ECE-S2AG471E

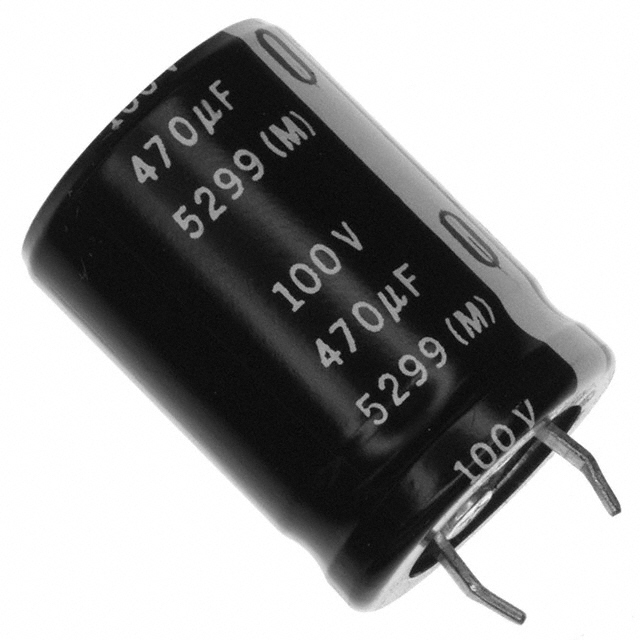

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ECE-S2AG471E with confidence from Components-World.HK, 1 Year Warranty
Dowload ECE-S2AG471E Details in PDFSee Product Specifications for product details.
Buy ECE-S2AG471E with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ECE-S2AG471E |
|---|---|
| Manufacturer | Panasonic |
| Description | CAP ALUM 470UF 20% 100V SNAP |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $1.046 | $0.847 | $0.647 | $0.493 | $0.431 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | ECE-S2AG471E | Manufacturer | Panasonic |
|---|---|---|---|
| Description | CAP ALUM 470UF 20% 100V SNAP | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 81263 pcs | Data sheet | NH Series, TS Type |
| Category | Capacitors | Voltage - Rated | 100V |
| Tolerance | ±20% | Surface Mount Land Size | - |
| Size / Dimension | 0.866" Dia (22.00mm) | Series | TS-NH |
| Ripple Current @ Low Frequency | 1.2A @ 120Hz | Ripple Current @ High Frequency | 1.38A @ 50kHz |
| Ratings | - | Polarization | Polar |
| Packaging | Bulk | Package / Case | Radial, Can - Snap-In |
| Other Names | ECES2AG471E P6474 |
Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | Lead Spacing | 0.394" (10.00mm) |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Height - Seated (Max) | 1.181" (30.00mm) |
| ESR (Equivalent Series Resistance) | - | Detailed Description | 470µF 100V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C |
| Capacitance | 470µF | Applications | General Purpose |
