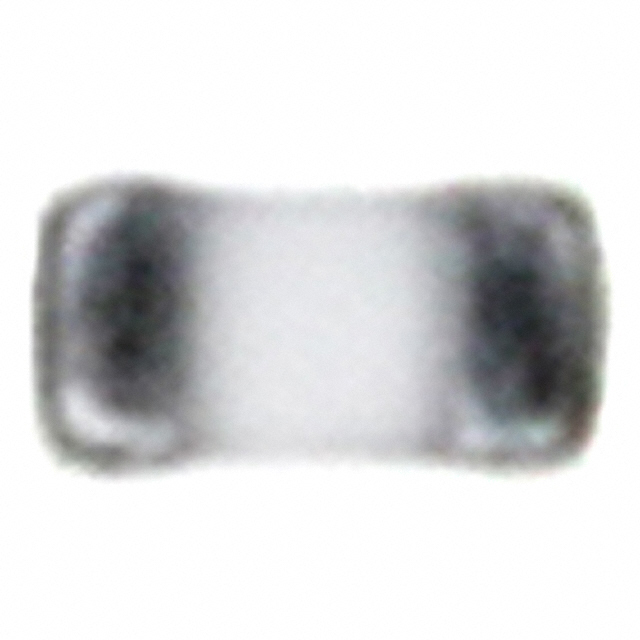

ECD-GZER809
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ECD-GZER809 with confidence from Components-World.HK, 1 Year Warranty
Dowload ECD-GZER809 Details in PDFSee Product Specifications for product details.
Buy ECD-GZER809 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ECD-GZER809 |
|---|---|
| Manufacturer | Panasonic |
| Description | CAP CER 0.8PF 25V C0G/NP0 0201 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.119 | $0.082 | $0.046 | $0.033 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ECD-GZER809 | Manufacturer | Panasonic |
|---|---|---|---|
| Description | CAP CER 0.8PF 25V C0G/NP0 0201 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 737866 pcs | Data sheet | ECD,ECJ,ECY PackagingECD-G Series (High-Q)ECD,ECJ,ECY Handling PrecautionsECD,ECJ,ECY Handling Precautions(2)ECD,ECJ,ECY Packaging(2) |
| Category | Capacitors | Voltage - Rated | 25V |
| Tolerance | ±0.075pF | Thickness (Max) | 0.013" (0.33mm) |
| Temperature Coefficient | C0G, NP0 | Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Series | ECD | Ratings | - |
| Packaging | Original-Reel® | Package / Case | 0201 (0603 Metric) |
| Other Names | PCC2344DKR | Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount, MLCC | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Style | - | Lead Spacing | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | - |
| Features | High Q, Low Loss | Failure Rate | - |
| Detailed Description | 0.8pF ±0.075pF 25V Ceramic Capacitor C0G, NP0 0201 (0603 Metric) | Capacitance | 0.8pF |
| Applications | RF, Microwave, High Frequency |
