DSC9G02C0L

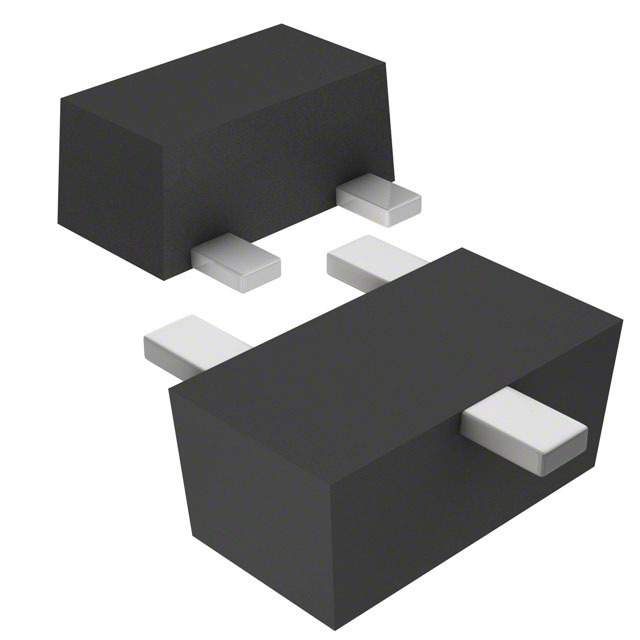

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DSC9G02C0L with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DSC9G02C0L with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DSC9G02C0L |
|---|---|
| Manufacturer | Panasonic |
| Description | TRANS RF NPN 20V 15MA SSMINI3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | 6000 pcs | 15000 pcs | 30000 pcs | |
|---|---|---|---|---|---|
| $0.057 | $0.053 | $0.049 | $0.049 | ||
- Product parameter
Product parameter
| Part Number | DSC9G02C0L | Manufacturer | Panasonic |
|---|---|---|---|
| Description | TRANS RF NPN 20V 15MA SSMINI3 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 444095 pcs | Data sheet | |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 20V |
| Transistor Type | NPN | Supplier Device Package | SSMini3-F3-B |
| Series | - | Power - Max | 125mW |
| Packaging | Tape & Reel (TR) | Package / Case | SC-89, SOT-490 |
| Other Names | DSC9G02C0L-ND DSC9G02C0LTR |
Operating Temperature | 150°C (TJ) |
| Noise Figure (dB Typ @ f) | 3.3dB @ 100MHz | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Gain | 24dB |
| Frequency - Transition | 650MHz | Detailed Description | RF Transistor NPN 20V 15mA 650MHz 125mW Surface Mount SSMini3-F3-B |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 65 @ 1mA, 6V | Current - Collector (Ic) (Max) | 15mA |
| Base Part Number | DSC9G02 |
