DSC7003R0L

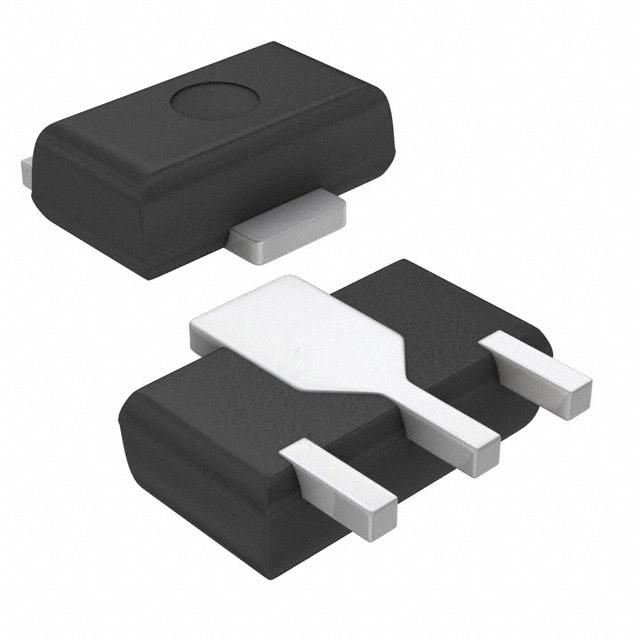

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DSC7003R0L with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DSC7003R0L with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DSC7003R0L |
|---|---|
| Manufacturer | Panasonic |
| Description | TRANS NPN 50V 1A MINIP3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 2000 pcs | 5000 pcs | 10000 pcs | 25000 pcs |
|---|---|---|---|---|---|
| $0.091 | $0.083 | $0.078 | $0.072 | $0.071 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | DSC7003R0L | Manufacturer | Panasonic |
|---|---|---|---|
| Description | TRANS NPN 50V 1A MINIP3 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 317275 pcs | Data sheet | DSC7003 |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 50V |
| Vce Saturation (Max) @ Ib, Ic | 400mV @ 50mA, 500mA | Transistor Type | NPN |
| Supplier Device Package | MiniP3-F2-B | Series | - |
| Power - Max | 1W | Packaging | Tape & Reel (TR) |
| Package / Case | TO-243AA | Other Names | DSC7003R0L-ND DSC7003R0LTR |
| Operating Temperature | 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Frequency - Transition | 170MHz |
| Detailed Description | Bipolar (BJT) Transistor NPN 50V 1A 170MHz 1W Surface Mount MiniP3-F2-B | DC Current Gain (hFE) (Min) @ Ic, Vce | 120 @ 500mA, 10V |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | Current - Collector (Ic) (Max) | 1A |
| Base Part Number | DSC7003 |
