DB2X20700L

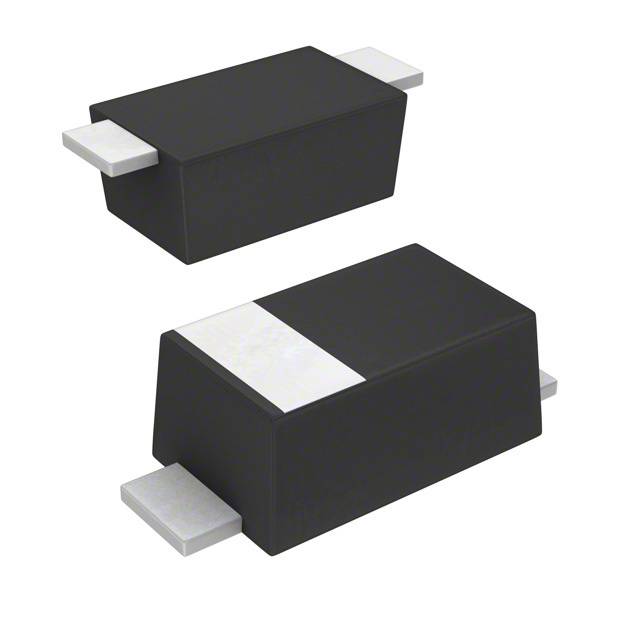

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DB2X20700L with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DB2X20700L with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DB2X20700L |
|---|---|
| Manufacturer | Panasonic |
| Description | DIODE SCHOTTKY 20V 1A MINI2 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.184 | $0.131 | $0.086 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | DB2X20700L | Manufacturer | Panasonic |
|---|---|---|---|
| Description | DIODE SCHOTTKY 20V 1A MINI2 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 259813 pcs | Data sheet | DB2X20700L |
| Category | Discrete Semiconductor Products | Voltage - Forward (Vf) (Max) @ If | 400mV @ 1A |
| Voltage - DC Reverse (Vr) (Max) | 20V | Supplier Device Package | Mini2-F4-B |
| Speed | Fast Recovery = 200mA (Io) | Series | - |
| Reverse Recovery Time (trr) | 12ns | Packaging | Cut Tape (CT) |
| Package / Case | SOD-123F | Other Names | DB2X20700LCT |
| Operating Temperature - Junction | 125°C (Max) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Diode Type | Schottky | Detailed Description | Diode Schottky 20V 1A Surface Mount Mini2-F4-B |
| Current - Reverse Leakage @ Vr | 1.5mA @ 6V | Current - Average Rectified (Io) | 1A |
| Capacitance @ Vr, F | 43pF @ 10V, 1MHz | Base Part Number | DB2X207 |
