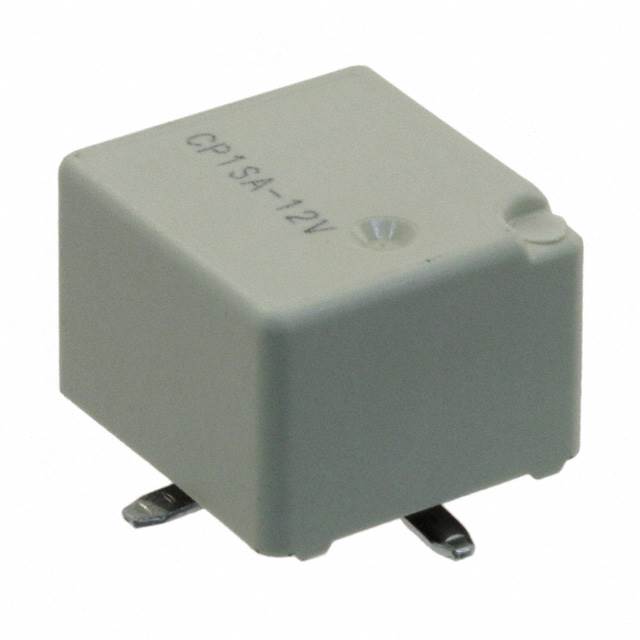

CP1SA-12V-Z
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CP1SA-12V-Z with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CP1SA-12V-Z with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CP1SA-12V-Z |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY AUTOMOTIVE SPDT 20A 12V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 300 pcs | 600 pcs | 1500 pcs | 3000 pcs | |
|---|---|---|---|---|---|
| $0.923 | $0.865 | $0.808 | $0.793 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | CP1SA-12V-Z | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RELAY AUTOMOTIVE SPDT 20A 12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 38728 pcs | Data sheet | CP Series |
| Category | Relays | Turn On Voltage (Max) | 7.2 VDC |
| Turn Off Voltage (Min) | 1 VDC | Termination Style | Gull Wing |
| Switching Voltage | 14VDC - Nom | Series | CP |
| Release Time | 10ms | Packaging | Tape & Reel (TR) |
| Other Names | 255-3417-2 CP1SA-12V-Z-ND CP1SA12VZ |
Operating Temperature | -40°C ~ 85°C |
| Operate Time | 10ms | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 4 (72 Hours) | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Sealed - Fully |
| Contact Rating (Current) | 20A | Contact Material | Silver Alloy, Cadmium Free |
| Contact Form | SPDT (1 Form C) | Coil Voltage | 12VDC |
| Coil Type | Non Latching | Coil Resistance | 225 Ohms |
| Coil Power | 640 mW | Coil Current | 53.3mA |
