CB1AHF-24V

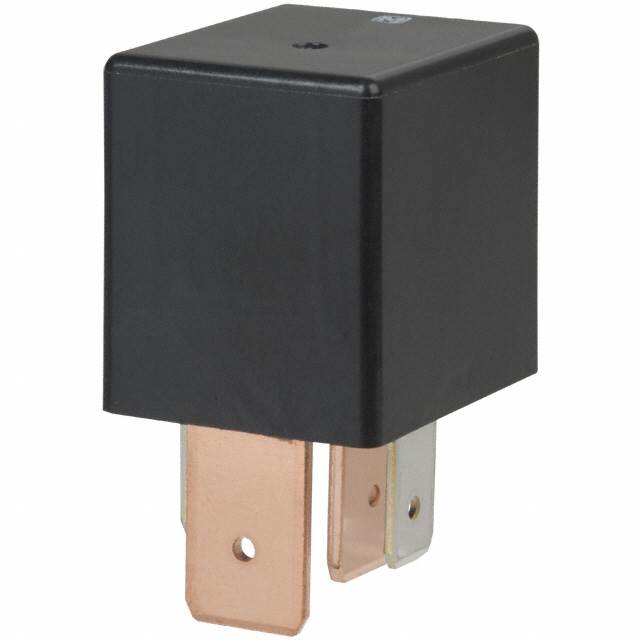

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CB1AHF-24V with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CB1AHF-24V with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CB1AHF-24V |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY AUTOMOTIVE SPST 70A 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.485 | $2.329 | $2.07 | $1.967 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.863 | $1.656 | $1.553 | $1.449 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | CB1AHF-24V | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RELAY AUTOMOTIVE SPST 70A 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 20768 pcs | Data sheet | CB Relays |
| Category | Relays | Turn On Voltage (Max) | 14 VDC |
| Turn Off Voltage (Min) | 2.4 VDC | Termination Style | Plug In, Quick Connect - Multiple Sizes |
| Switching Voltage | 14VDC - Nom | Series | CB |
| Release Time | 15ms | Packaging | Bulk |
| Other Names | 255-2727 CB1AHF24V |
Operating Temperature | -40°C ~ 85°C |
| Operate Time | 15ms | Mounting Type | Socketable |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Sealed - Flux Protection |
| Contact Rating (Current) | 70A | Contact Material | Silver Alloy, Cadmium Free |
| Contact Form | SPST-NO (1 Form A) | Coil Voltage | 24VDC |
| Coil Type | Non Latching | Coil Resistance | 320 Ohms |
| Coil Power | 1.8 W | Coil Current | 75.0mA |
