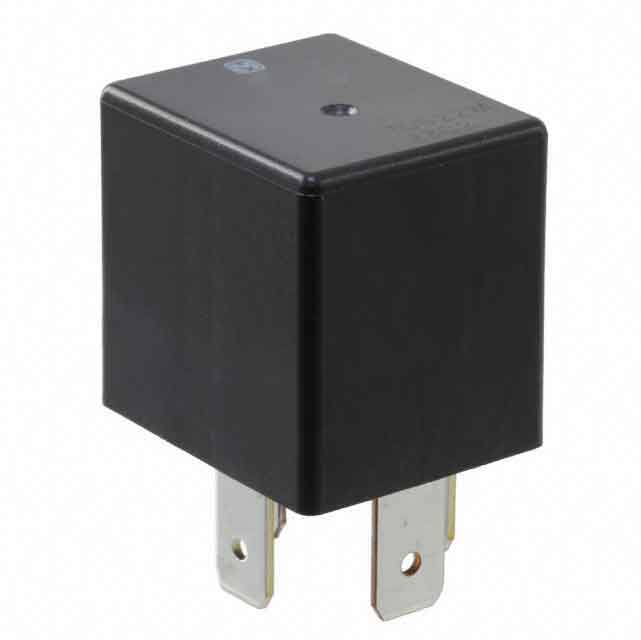

CB1AF-12V
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CB1AF-12V with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CB1AF-12V with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CB1AF-12V |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY AUTOMOTIVE SPST 40A 12V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.871 | $1.753 | $1.558 | $1.48 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.402 | $1.247 | $1.169 | $1.091 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | CB1AF-12V | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RELAY AUTOMOTIVE SPST 40A 12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 29518 pcs | Data sheet | CB Relays |
| Category | Relays | Turn On Voltage (Max) | 7 VDC |
| Turn Off Voltage (Min) | 1.2 VDC | Termination Style | Plug In, Quick Connect - 0.250" (6.3mm) |
| Switching Voltage | 14VDC - Nom | Series | CB |
| Release Time | 15ms | Packaging | Bulk |
| Other Names | 255-2172 CB1AF-12V-ND CB1AF12V |
Operating Temperature | -40°C ~ 85°C |
| Operate Time | 15ms | Mounting Type | Socketable |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Sealed - Flux Protection |
| Contact Rating (Current) | 40A | Contact Material | Silver Alloy, Cadmium Free |
| Contact Form | SPST-NO (1 Form A) | Coil Voltage | 12VDC |
| Coil Type | Non Latching | Coil Resistance | 103 Ohms |
| Coil Power | 1.4 W | Coil Current | 117mA |
