Home > Products > Switches > Snap Action, Limit Switches > AZ40019

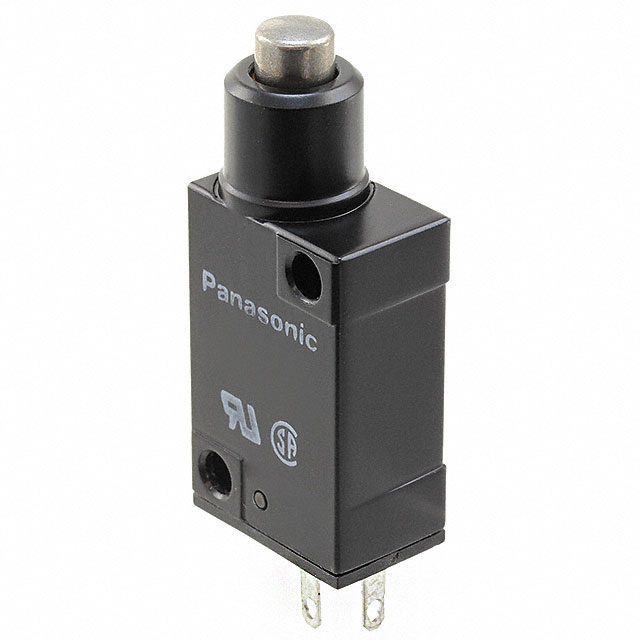

AZ40019

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AZ40019 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	AZ40019
Manufacturer	Panasonic
Description	SWITCH SNAP ACTION SPDT 5A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4940 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	AZ40019	Manufacturer	Panasonic
Description	SWITCH SNAP ACTION SPDT 5A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4940 pcs	Data sheet	AZ4 Series
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Termination Style	Solder, Quick Connect - 0.110" (2.8mm)
Switch Function	On-Mom	Series	AZ4
Release Force	70gf	Pretravel	0.040" (1.0mm)
Packaging	Bulk	Overtravel	0.158" (4.0mm)
Other Names	1110-3403	Operating Temperature	-20°C ~ 60°C
Operating Position	-	Operating Force	700gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	10,000,000 Cycles	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP64 - Dust Tight, Water Resistant	Features	-
Electrical Life	300,000 Cycles	Differential Travel	0.006" (0.15mm)
Current Rating	5A (AC/DC)	Circuit	SPDT
Actuator Type	Round (Pin Plunger)
