Home > Products > Switches > Snap Action, Limit Switches > AZ35269

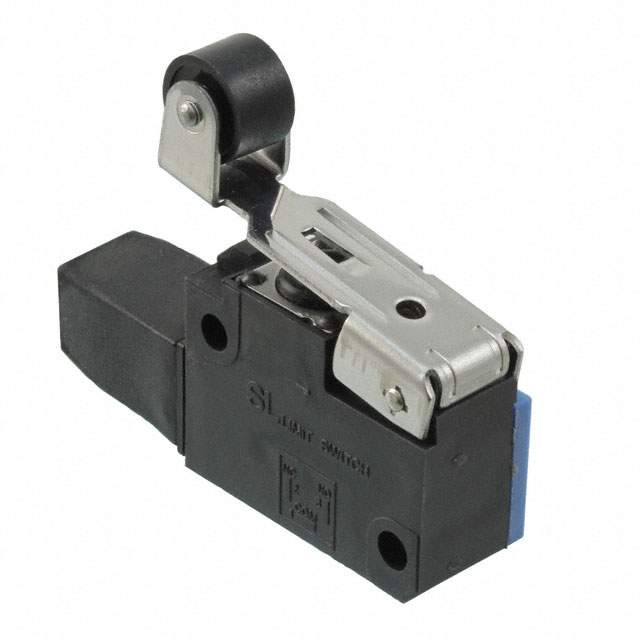

AZ35269

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AZ35269 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	AZ35269
Manufacturer	Panasonic
Description	SWITCH SNAP ACTION SPDT 4A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4765 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter

Product parameter

Part Number	AZ35269	Manufacturer	Panasonic
Description	SWITCH SNAP ACTION SPDT 4A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4765 pcs	Data sheet
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Termination Style	Solder, Quick Connect - 0.110" (2.8mm)
Switch Function	On-Mom	Series	AZ3
Release Force	60gf	Pretravel	0.080" (2.0mm)
Packaging	Bulk	Overtravel	0.138" (3.5mm)
Other Names	1110-3354	Operating Temperature	-20°C ~ 60°C
Operating Position	1.091" (27.7mm)	Operating Force	300gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	10,000,000 Cycles	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP60 - Dust Tight	Features	Terminal Cover
Electrical Life	100,000 Cycles	Differential Travel	0.040" (1.0mm)
Current Rating	4A (AC/DC)	Circuit	SPDT
Actuator Type	Lever, Roller
