AYF533435A

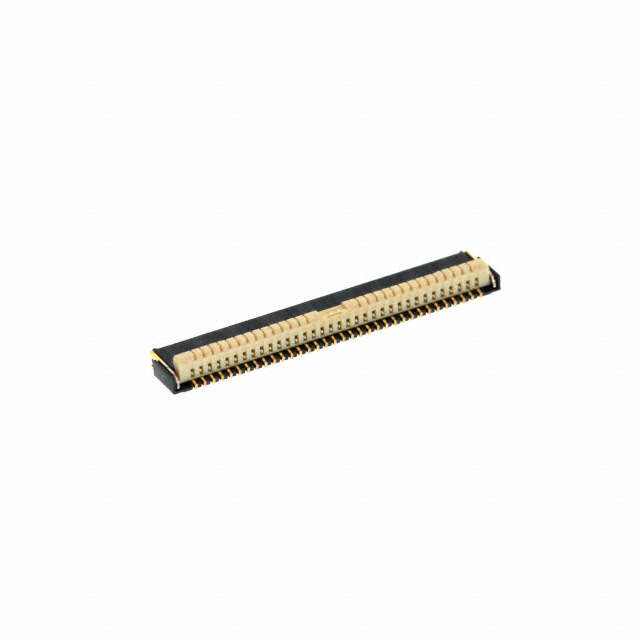

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AYF533435A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AYF533435A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AYF533435A |
|---|---|
| Manufacturer | Panasonic |
| Description | CONN FFC/FPC 34POS 0.5MM SMD R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.903 | $0.866 | $0.793 | $0.757 | $0.721 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.631 | $0.613 | $0.523 | $0.487 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | AYF533435A | Manufacturer | Panasonic |
|---|---|---|---|
| Description | CONN FFC/FPC 34POS 0.5MM SMD R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 76127 pcs | Data sheet | Y5B,Y5BW(T) Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | Y5B |
| Pitch | 0.020" (0.50mm) | Packaging | Bulk |
| Other Names | 255-5683 AYF533435A-ND |
Operating Temperature | -55°C ~ 85°C |
| Number of Positions | 34 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 10 Weeks |
| Locking Feature | Flip Lock, Backlock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP) | Housing Color | - |
| Height Above Board | 0.039" (1.00mm) | Flat Flex Type | FFC, FPC |
| Features | - | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 34 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle | Current Rating | 0.5A per Contact |
| Contact Material | Copper Alloy | Contact Finish Thickness | Flash |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Top and Bottom |
| Cable End Type | Tapered | Actuator Material | Liquid Crystal Polymer (LCP) |
| Actuator Color | - |
