AYF532435

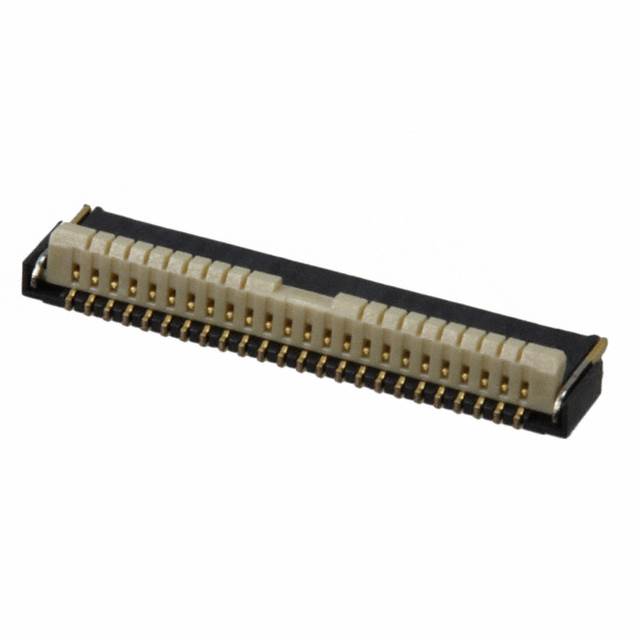

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AYF532435 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AYF532435 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AYF532435 |
|---|---|
| Manufacturer | Panasonic |
| Description | CONN FFC FPC 24POS 0.50MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 5000 pcs | 10000 pcs | |||
|---|---|---|---|---|---|
| $0.276 | $0.27 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | AYF532435 | Manufacturer | Panasonic |
|---|---|---|---|
| Description | CONN FFC FPC 24POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 81011 pcs | Data sheet | Y5B,Y5BW(T) Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | Y5B |
| Pitch | 0.020" (0.50mm) | Packaging | Tape & Reel (TR) |
| Other Names | 255-3062-2 AYF532435-ND |
Operating Temperature | -55°C ~ 85°C |
| Number of Positions | 24 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 10 Weeks |
| Locking Feature | Flip Lock, Backlock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP) | Housing Color | - |
| Height Above Board | 0.039" (1.00mm) | Flat Flex Type | FFC, FPC |
| Features | - | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 24 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle | Current Rating | 0.5A per Contact |
| Contact Material | Copper Alloy | Contact Finish Thickness | Flash |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Top and Bottom |
| Cable End Type | Tapered | Actuator Material | Liquid Crystal Polymer (LCP) |
| Actuator Color | - |
