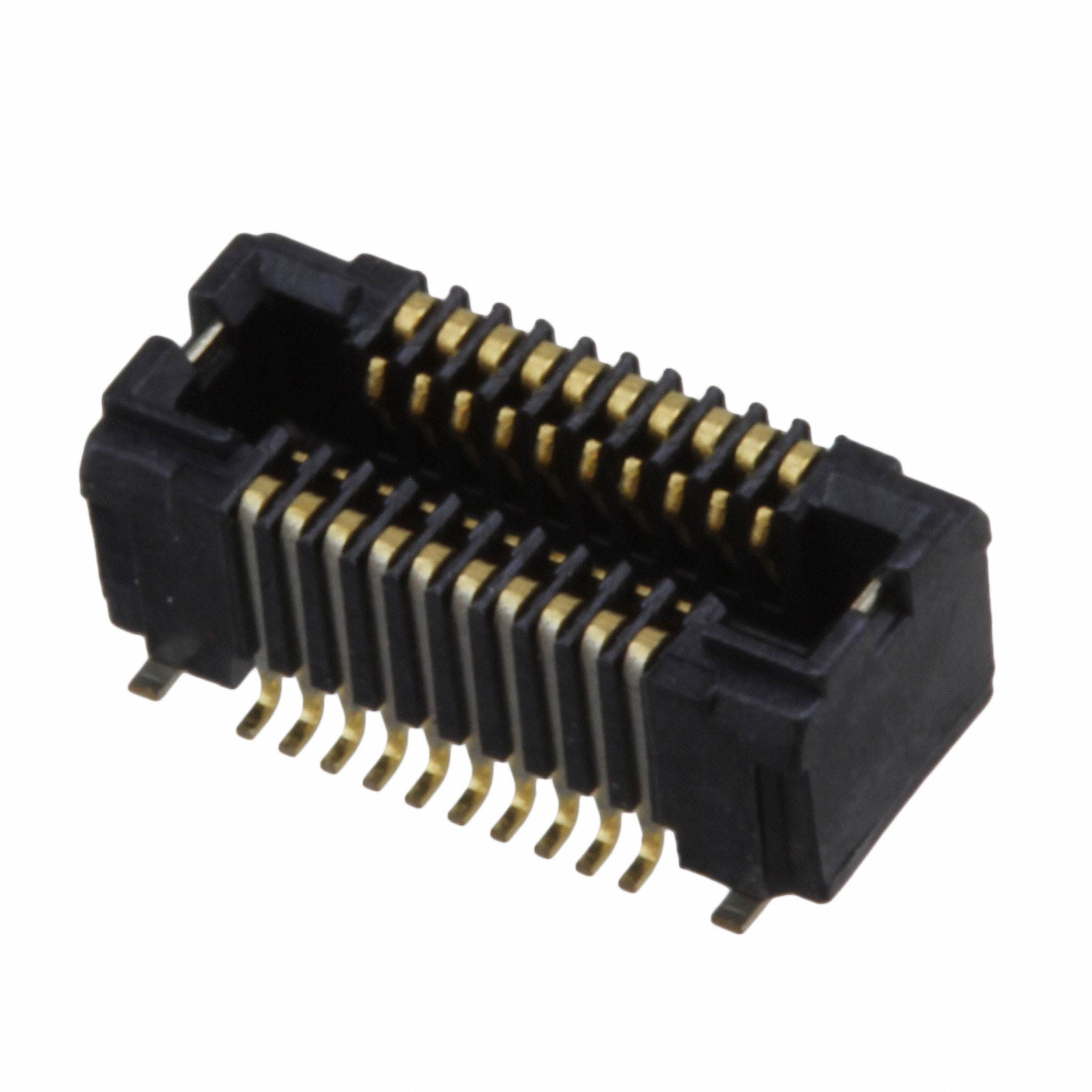

AXT320224
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AXT320224 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AXT320224 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AXT320224 |
|---|---|
| Manufacturer | Panasonic |
| Description | CONN SOCKET .4MM 20POS SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 2000 pcs | 3000 pcs | 5000 pcs | |
|---|---|---|---|---|---|
| $0.693 | $0.669 | $0.645 | $0.621 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | AXT320224 | Manufacturer | Panasonic |
|---|---|---|---|
| Description | CONN SOCKET .4MM 20POS SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 47800 pcs | Data sheet | P4S Series Datasheet |
| Category | Connectors, Interconnects | Series | P4S |
| Pitch | 0.016" (0.40mm) | Packaging | Tape & Reel (TR) |
| Other Names | 255-5100-2 AXT320224-ND |
Number of Rows | 2 |
| Number of Positions | 20 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mated Stacking Heights | 2.5mm, 3mm |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.096" (2.45mm) | Features | Solder Retention |
| Detailed Description | 20 Position Connector Socket, Outer Shroud Contacts Surface Mount Gold | Contact Finish Thickness | - |
| Contact Finish | Gold | Connector Type | Socket, Outer Shroud Contacts |
