AXE680124A

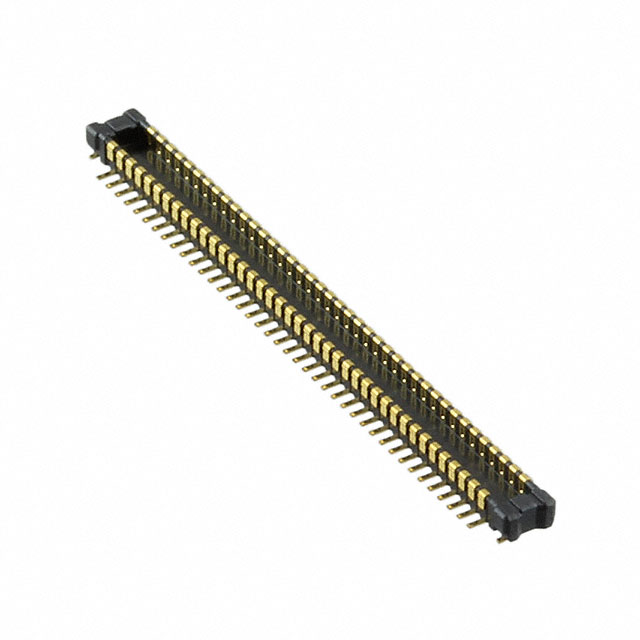

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AXE680124A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AXE680124A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AXE680124A |
|---|---|
| Manufacturer | Panasonic |
| Description | CONN HEADER .4MM 80 POS SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.475 | $1.416 | $1.298 | $1.239 | $1.18 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.033 | $1.003 | $0.856 | $0.797 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | AXE680124A | Manufacturer | Panasonic |
|---|---|---|---|
| Description | CONN HEADER .4MM 80 POS SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 40225 pcs | Data sheet | A4S Series Datasheet |
| Category | Connectors, Interconnects | Series | A4S |
| Pitch | 0.016" (0.40mm) | Packaging | Strip |
| Other Names | 255-5535 AXE680124A-ND |
Number of Rows | 2 |
| Number of Positions | 80 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mated Stacking Heights | 0.8mm |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.026" (0.65mm) | Features | Solder Retention |
| Detailed Description | 80 Position Connector Header, Outer Shroud Contacts Surface Mount Gold | Contact Finish Thickness | - |
| Contact Finish | Gold | Connector Type | Header, Outer Shroud Contacts |
