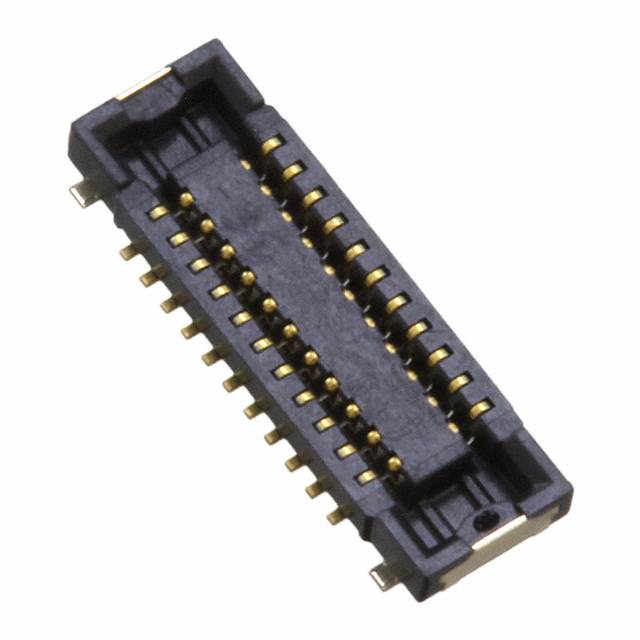

AXE522124
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AXE522124 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AXE522124 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AXE522124 |
|---|---|
| Manufacturer | Panasonic |
| Description | CONN SOCKET .4MM 22 POS SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.817 | $0.74 | $0.695 | $0.665 | $0.634 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.574 | $0.529 | $0.453 | $0.423 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | AXE522124 | Manufacturer | Panasonic |
|---|---|---|---|
| Description | CONN SOCKET .4MM 22 POS SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 82448 pcs | Data sheet | A4S Series Datasheet |
| Category | Connectors, Interconnects | Series | A4S |
| Pitch | 0.016" (0.40mm) | Packaging | Cut Tape (CT) |
| Other Names | 255-3192-1 | Number of Rows | 2 |
| Number of Positions | 22 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) | Mated Stacking Heights | 0.8mm, 1mm |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.030" (0.75mm) | Features | Solder Retention |
| Detailed Description | 22 Position Connector Socket, Center Strip Contacts Surface Mount Gold | Contact Finish Thickness | - |
| Contact Finish | Gold | Connector Type | Socket, Center Strip Contacts |
