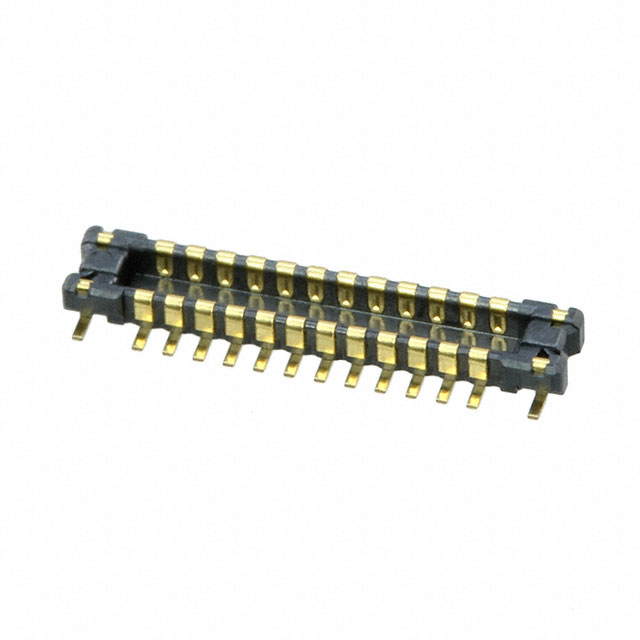

AXE224124A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AXE224124A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AXE224124A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AXE224124A |
|---|---|
| Manufacturer | Panasonic |
| Description | CONN HEADER 24PIN .4MM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.265 | $1.214 | $1.113 | $1.062 | $1.012 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.885 | $0.86 | $0.733 | $0.683 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | AXE224124A | Manufacturer | Panasonic |
|---|---|---|---|
| Description | CONN HEADER 24PIN .4MM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 55933 pcs | Data sheet | A4US Series LE Brief |
| Category | Connectors, Interconnects | Series | A4US |
| Pitch | 0.016" (0.40mm) | Packaging | Strip |
| Other Names | 255-5215 AXE224124DA |
Number of Rows | 2 |
| Number of Positions | 24 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mated Stacking Heights | 0.8mm |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.026" (0.65mm) | Features | Solder Retention |
| Detailed Description | 24 Position Connector Header, Outer Shroud Contacts Surface Mount Gold | Contact Finish Thickness | - |
| Contact Finish | Gold | Connector Type | Header, Outer Shroud Contacts |
