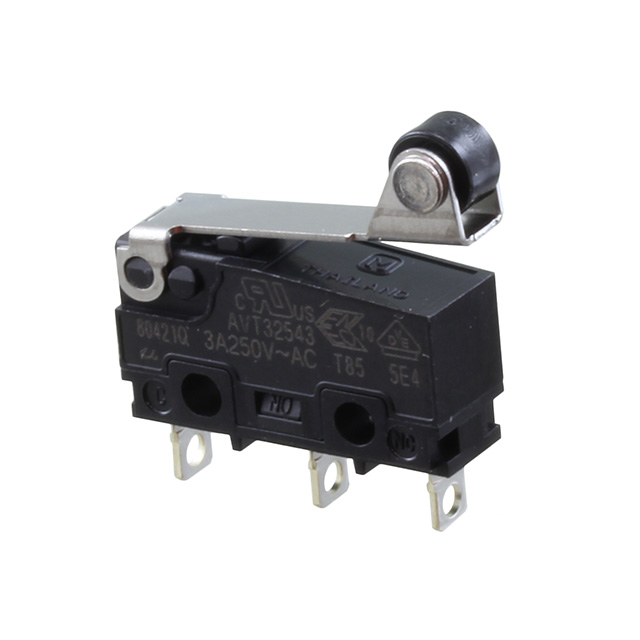

AVT32543-A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AVT32543-A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AVT32543-A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AVT32543-A |
|---|---|
| Manufacturer | Panasonic |
| Description | SWITCH SNAP ACTION SPDT 3A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.952 | $0.877 | $0.823 | $0.804 | $0.64 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.603 | $0.567 | $0.53 | $0.494 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | AVT32543-A | Manufacturer | Panasonic |
|---|---|---|---|
| Description | SWITCH SNAP ACTION SPDT 3A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 73540 pcs | Data sheet | AV(M,T,L)3 Series Datasheet |
| Category | Switches | Voltage Rating - DC | 30V |
| Voltage Rating - AC | 125V | Termination Style | Solder Lug |
| Switch Function | On-Mom | Series | AVT3 |
| Release Force | 3.500gf | Pretravel | 0.100" (2.5mm) |
| Packaging | Bulk | Overtravel | 0.030" (0.76mm) |
| Other Names | 255-6138 AVT32543-A-ND |
Operating Temperature | -25°C ~ 85°C |
| Operating Position | 0.571" (14.5mm) | Operating Force | 40gf |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 500,000 Cycles | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Electrical Life | 50,000 Cycles |
| Differential Travel | 0.020" (0.5mm) | Current Rating | 3A (AC/DC) |
| Circuit | SPDT | Actuator Type | Lever, Roller |
