AVL3825613-A

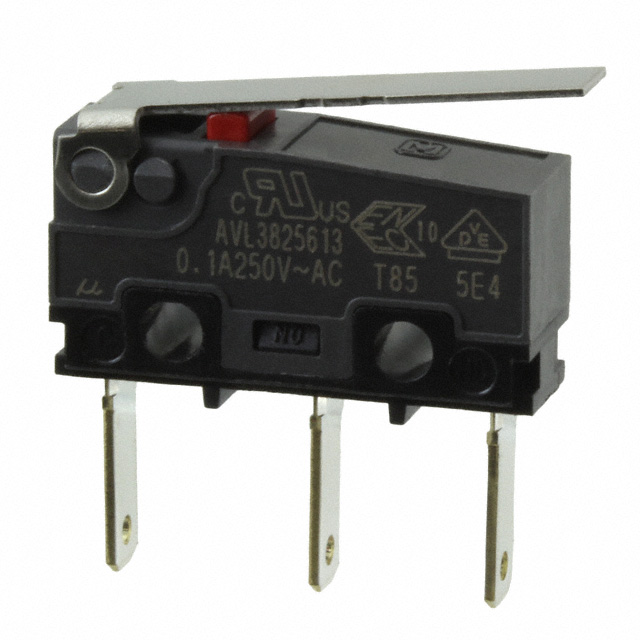

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AVL3825613-A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AVL3825613-A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AVL3825613-A |
|---|---|
| Manufacturer | Panasonic |
| Description | SWITCH SNAP ACT SPDT 100MA 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.813 | $0.751 | $0.704 | $0.688 | $0.547 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.516 | $0.485 | $0.453 | $0.422 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | AVL3825613-A | Manufacturer | Panasonic |
|---|---|---|---|
| Description | SWITCH SNAP ACT SPDT 100MA 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 71464 pcs | Data sheet | AV(M,T,L)3 Series Datasheet |
| Category | Switches | Voltage Rating - DC | 30V |
| Voltage Rating - AC | 125V | Termination Style | Quick Connect - 0.110" (2.8mm) |
| Switch Function | On-Mom | Series | AVL3 |
| Release Force | 3.500gf | Pretravel | 0.110" (2.8mm) |
| Packaging | Bulk | Overtravel | 0.047" (1.2mm) |
| Other Names | 255-3103 AVL3825613A |
Operating Temperature | -25°C ~ 85°C |
| Operating Position | 0.345" (8.8mm) | Operating Force | 55gf |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 10,000,000 Cycles | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Electrical Life | 200,000 Cycles |
| Differential Travel | 0.032" (0.81mm) | Current Rating | 100mA (AC/DC) |
| Circuit | SPDT | Actuator Type | Lever, Straight |
