Home > Products > Switches > Snap Action, Limit Switches > AV16653F

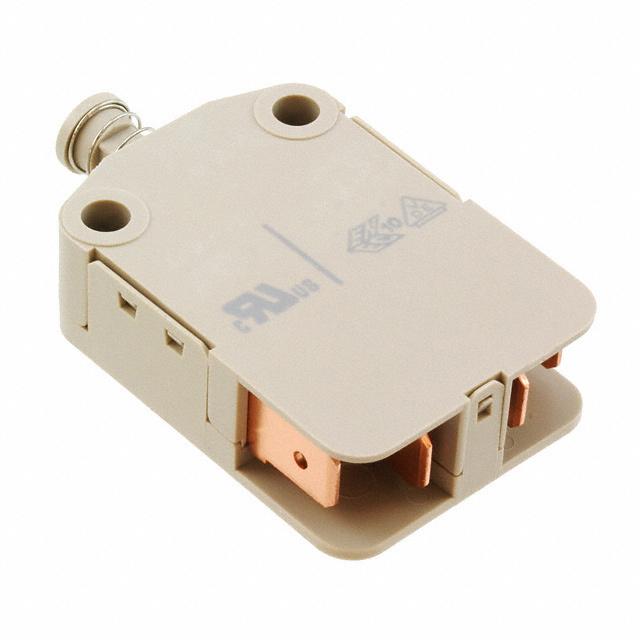

AV16653F

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AV16653F with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	AV16653F
Manufacturer	Panasonic
Description	SWITCH SNAP ACT SPST-NO 10A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 22563 pcs
Reference Price (In US Dollars)	100 pcs
Reference Price (In US Dollars)	$1.36

Product parameter
Data sheet

Product parameter

Part Number	AV16653F	Manufacturer	Panasonic
Description	SWITCH SNAP ACT SPST-NO 10A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	22563 pcs	Data sheet	AV1(GW) Switches
Category	Switches	Voltage Rating - AC	125V
Termination Style	Quick Connect - 0.250" (6.3mm)	Switch Function	Off-Mom
Series	AV1	Release Force	-
Pretravel	-	Packaging	Bulk
Overtravel	0.083" (2.1mm)	Other Names	255-4186
Operating Temperature	-25°C ~ 85°C	Operating Position	0.500" (12.7mm)
Operating Force	500gf	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	1,000,000 Cycles
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP40	Features	-
Electrical Life	100,000 Cycles	Differential Travel	-
Current Rating	10A (AC)	Circuit	SPST-NO
Actuator Type	Round (Pin Plunger)
