APS1551SX

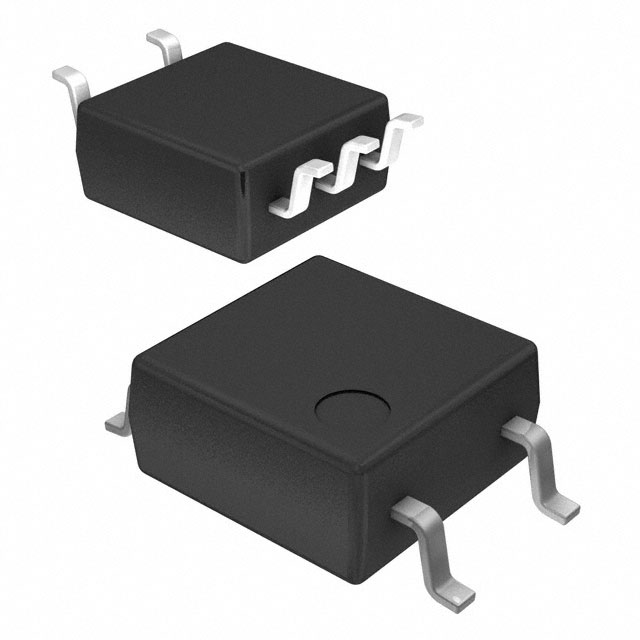

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APS1551SX with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APS1551SX with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APS1551SX |
|---|---|
| Manufacturer | Panasonic |
| Description | OPTOISO 3.75KV PUSH PULL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 2000 pcs | |||
|---|---|---|---|---|---|
| $0.844 | $0.809 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | APS1551SX | Manufacturer | Panasonic |
|---|---|---|---|
| Description | OPTOISO 3.75KV PUSH PULL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 40450 pcs | Data sheet | APS1 Catalog |
| Category | Isolators | Voltage - Supply | 4.5 V ~ 5.5 V |
| Voltage - Isolation | 3750Vrms | Voltage - Forward (Vf) (Typ) | 1.6V |
| Supplier Device Package | 6-SO, 5 Lead | Series | - |
| Rise / Fall Time (Typ) | 4ns, 5ns | Propagation Delay tpLH / tpHL (Max) | 30ns, 30ns |
| Packaging | Tape & Reel (TR) | Package / Case | 6-SOIC (0.173", 4.40mm Width), 5 Leads |
| Output Type | Push-Pull, Totem Pole | Other Names | 255-5436-2 |
| Operating Temperature | -40°C ~ 105°C | Number of Channels | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 2A (4 Weeks) |
| Manufacturer Standard Lead Time | 15 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inputs - Side 1/Side 2 | 1/0 | Input Type | DC |
| Detailed Description | Logic Output Optoisolator 50Mbps Push-Pull, Totem Pole 3750Vrms 1 Channel 15kV/µs CMTI 6-SO, 5 Lead | Data Rate | 50Mbps |
| Current - Output / Channel | 10mA | Current - DC Forward (If) (Max) | 25mA |
| Common Mode Transient Immunity (Min) | 15kV/µs |
