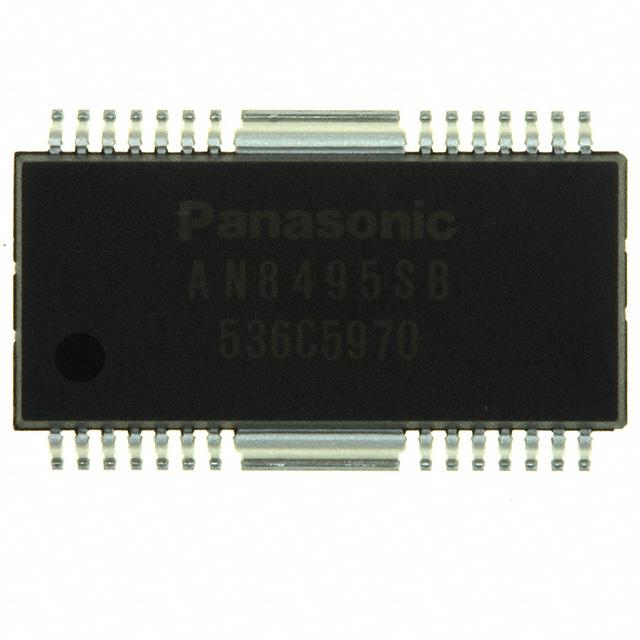

AN8495SB-E1V
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AN8495SB-E1V with confidence from Components-World.HK, 1 Year Warranty
Dowload AN8495SB-E1V Details in PDFSee Product Specifications for product details.
Buy AN8495SB-E1V with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AN8495SB-E1V |
|---|---|
| Manufacturer | Panasonic |
| Description | IC MOTOR DRIVER PAR 42HSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $2.09 | $1.867 | $1.68 | |||
| 100 pcs | 250 pcs | 500 pcs | |||
| $1.531 | $1.382 | $1.24 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | AN8495SB-E1V | Manufacturer | Panasonic |
|---|---|---|---|
| Description | IC MOTOR DRIVER PAR 42HSOP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 26207 pcs | Data sheet | AN8495SB |
| Category | Integrated Circuits (ICs) | Voltage - Supply | 4.75 V ~ 5.25 V |
| Voltage - Load | 18 V ~ 28 V | Technology | Power MOSFET |
| Supplier Device Package | 28-HSOP | Step Resolution | 1, 1/2, 1/4 |
| Series | - | Packaging | Cut Tape (CT) |
| Package / Case | 28-BSOP (0.327", 8.30mm Width) + 2 Heat Tabs | Output Configuration | Half Bridge (4) |
| Other Names | AN8495SBE1CT AN8495SBE1CT-ND AN8495SBE1V AN8495SBE1VCT |
Operating Temperature | - |
| Mounting Type | Surface Mount | Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Interface | Parallel |
| Function | Driver - Fully Integrated, Control and Power Stage | Detailed Description | Bipolar Motor Driver Power MOSFET Parallel 28-HSOP |
| Current - Output | 1.5A | Base Part Number | AN8495SB |
| Applications | General Purpose |
