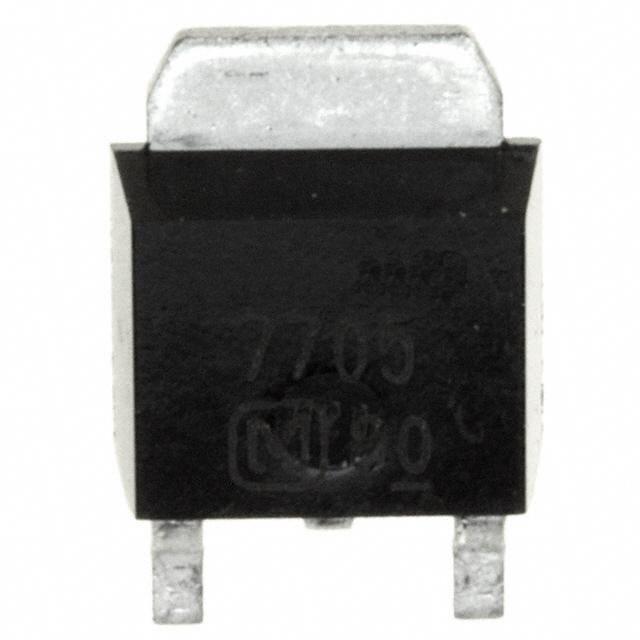

AN7705SP
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AN7705SP with confidence from Components-World.HK, 1 Year Warranty
Dowload AN7705SP Details in PDFSee Product Specifications for product details.
Buy AN7705SP with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AN7705SP |
|---|---|
| Manufacturer | Panasonic |
| Description | IC REG LINEAR 5V 1.2A SP3SUA |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | AN7705SP | Manufacturer | Panasonic |
|---|---|---|---|
| Description | IC REG LINEAR 5V 1.2A SP3SUA | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4799 pcs | Data sheet | AN7705SP Datasheet |
| Category | Integrated Circuits (ICs) | Voltage Dropout (Max) | - |
| Voltage - Output (Min/Fixed) | 5V | Voltage - Output (Max) | - |
| Voltage - Input (Max) | 16V | Supplier Device Package | SP-3SUA |
| Series | - | Protection Features | Over Current, Over Temperature, Short Circuit |
| Packaging | Bulk | Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| PSRR | 70dB (120Hz) | Output Type | Fixed |
| Output Configuration | Positive | Operating Temperature | 25°C ~ 125°C |
| Number of Regulators | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | Linear Voltage Regulator IC Positive Fixed 1 Output 5V 1.2A SP-3SUA | Current - Quiescent (Iq) | 5mA |
| Current - Output | 1.2A | Control Features | - |
| Base Part Number | AN7705 |
