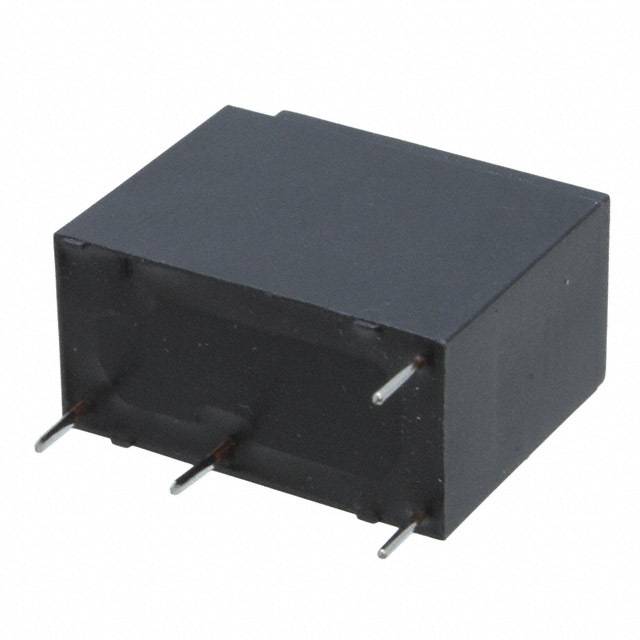

ALQ309
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ALQ309 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ALQ309 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ALQ309 |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY GEN PURPOSE SPST 10A 9V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.809 | $0.76 | $0.675 | $0.642 | $0.608 | |
| 300 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.54 | $0.507 | $0.473 | $0.456 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ALQ309 | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RELAY GEN PURPOSE SPST 10A 9V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 67605 pcs | Data sheet | ALQ (LQ) Series New Prod IntroALQ Series |
| Category | Relays | Turn On Voltage (Max) | 6.75 VDC |
| Turn Off Voltage (Min) | 0.45 VDC | Termination Style | PC Pin |
| Switching Voltage | 250VAC - Max | Series | ALQ |
| Release Time | 20ms | Relay Type | General Purpose |
| Packaging | Tube | Other Names | 255-3557 |
| Operating Temperature | -40°C ~ 85°C | Operate Time | 20ms |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 22 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Insulation - Class B | Detailed Description | General Purpose Relay SPST-NO (1 Form A) 9VDC Coil Through Hole |
| Contact Rating (Current) | 10A | Contact Material | Silver Nickel (AgNi) |
| Contact Form | SPST-NO (1 Form A) | Coil Voltage | 9VDC |
| Coil Type | Non Latching | Coil Resistance | 405 Ohms |
| Coil Power | 200 mW | Coil Current | 22.2mA |
