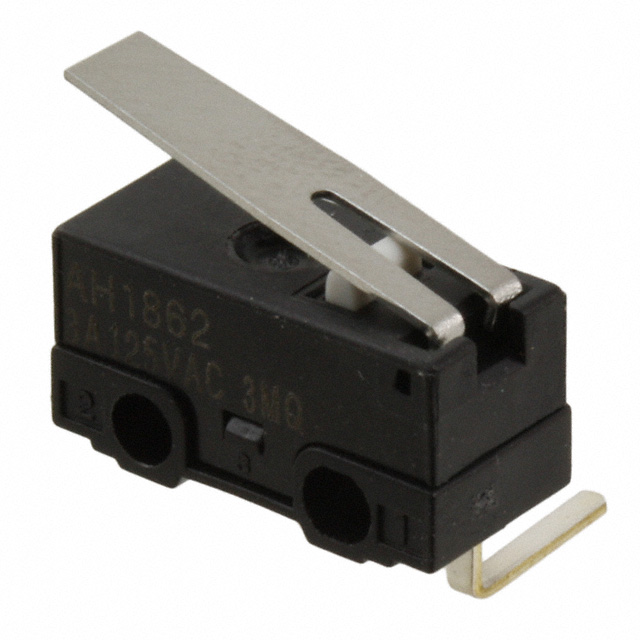

AH1862-A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AH1862-A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AH1862-A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AH1862-A |
|---|---|
| Manufacturer | Panasonic |
| Description | SWITCH SNAP ACTION SPDT 3A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | AH1862-A | Manufacturer | Panasonic |
|---|---|---|---|
| Description | SWITCH SNAP ACTION SPDT 3A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4566 pcs | Data sheet | AH1 Series Datasheet |
| Category | Switches | Voltage Rating - DC | 30V |
| Voltage Rating - AC | 125V | Termination Style | PC Pin |
| Switch Function | On-Mom | Series | AH1 |
| Release Force | 5.099gf | Pretravel | 0.083" (2.1mm) |
| Packaging | Tube | Overtravel | 0.022" (0.55mm) |
| Other Names | 255-4102-5 AH1862-A-ND AH1862A |
Operating Temperature | -25°C ~ 85°C |
| Operating Position | 0.268" (6.8mm) | Operating Force | 50gf |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 500,000 Cycles | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Features | - |
| Electrical Life | 30,000 Cycles | Differential Travel | 0.020" (0.5mm) |
| Current Rating | 3A (AC), 2A (DC) | Circuit | SPDT |
| Actuator Type | Lever, Straight |
