AH1764619-A

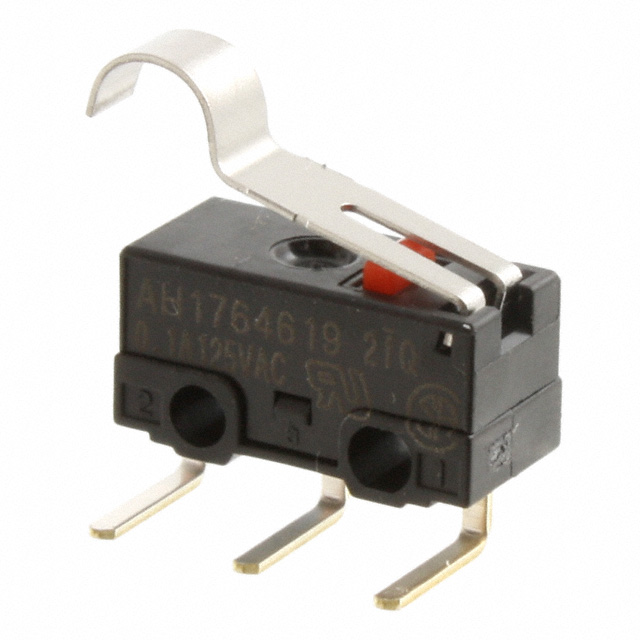

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AH1764619-A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AH1764619-A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AH1764619-A |
|---|---|
| Manufacturer | Panasonic |
| Description | SWITCH SNAP ACT SPDT 100MA 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.733 | $0.676 | $0.634 | $0.62 | $0.493 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.465 | $0.437 | $0.409 | $0.38 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | AH1764619-A | Manufacturer | Panasonic |
|---|---|---|---|
| Description | SWITCH SNAP ACT SPDT 100MA 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 93166 pcs | Data sheet | AH1 Series Datasheet |
| Category | Switches | Voltage Rating - DC | 30V |
| Voltage Rating - AC | 125V | Termination Style | PC Pin |
| Switch Function | On-Mom | Series | AH1 |
| Release Force | 4.079gf | Pretravel | 0.083" (2.1mm) |
| Packaging | Tube | Overtravel | 0.020" (0.5mm) |
| Other Names | 255-3529-5 AH1764619-A-ND AH1764619A |
Operating Temperature | -25°C ~ 85°C |
| Operating Position | 0.374" (9.5mm) | Operating Force | 55gf |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 500,000 Cycles | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Electrical Life | 100,000 Cycles |
| Differential Travel | 0.020" (0.5mm) | Current Rating | 100mA (AC/DC) |
| Circuit | SPDT | Actuator Type | Lever, Simulated Roller |
