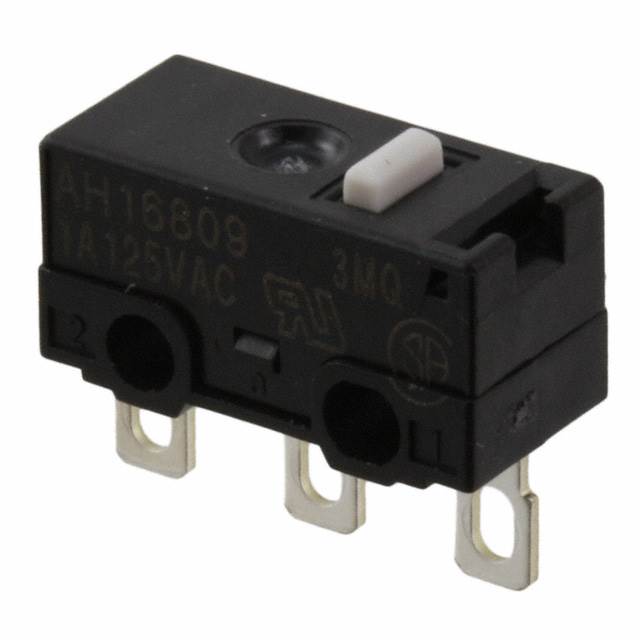

AH16809-A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AH16809-A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AH16809-A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AH16809-A |
|---|---|
| Manufacturer | Panasonic |
| Description | SWITCH SNAP ACTION SPDT 1A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.465 | $0.439 | $0.422 | $0.404 | $0.387 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.307 | $0.281 | $0.272 | $0.246 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | AH16809-A | Manufacturer | Panasonic |
|---|---|---|---|
| Description | SWITCH SNAP ACTION SPDT 1A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 97883 pcs | Data sheet | AH1 Series Datasheet |
| Category | Switches | Voltage Rating - DC | 30V |
| Voltage Rating - AC | 125V | Termination Style | Solder Lug |
| Switch Function | On-Mom | Series | AH1 |
| Release Force | 10gf | Pretravel | 0.020" (0.5mm) |
| Packaging | Tube | Overtravel | 0.010" (0.25mm) |
| Other Names | 255-4106-5 AH16809-A-ND AH16809A |
Operating Temperature | -25°C ~ 85°C |
| Operating Position | 0.217" (5.5mm) | Operating Force | 74gf |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 1,000,000 Cycles | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Electrical Life | 30,000 Cycles |
| Differential Travel | 0.005" (0.12mm) | Current Rating | 1A (AC/DC) |
| Circuit | SPDT | Actuator Type | Round (Pin Plunger) |
