AGQ20TS09Z

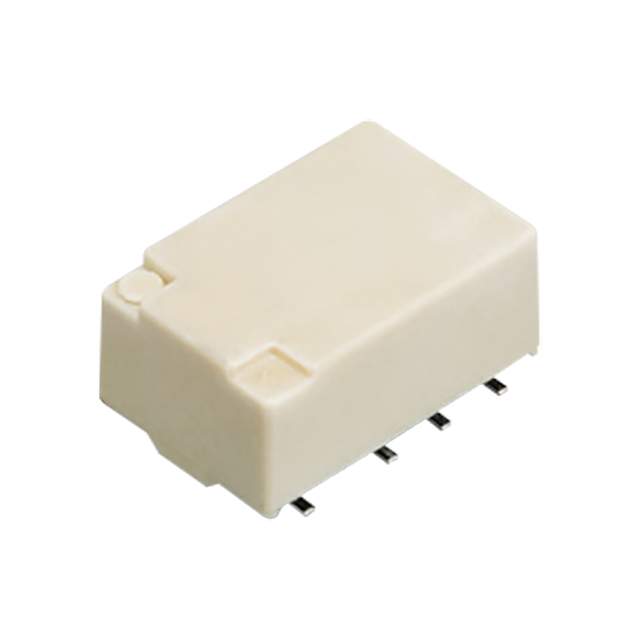

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AGQ20TS09Z with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AGQ20TS09Z with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AGQ20TS09Z |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY GEN PURPOSE DPDT 2A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 900 pcs | ||||
|---|---|---|---|---|---|
| $0.729 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | AGQ20TS09Z | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RELAY GEN PURPOSE DPDT 2A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 50657 pcs | Data sheet | GQ Relays TH Types Datasheet |
| Category | Relays | Turn On Voltage (Max) | 6.75 VDC |
| Turn Off Voltage (Min) | 0.9 VDC | Termination Style | Gull Wing |
| Switching Voltage | 125VAC, 110VDC - Max | Series | AGQ TH |
| Release Time | 4ms | Relay Type | General Purpose |
| Packaging | Tape & Reel (TR) | Operating Temperature | -40°C ~ 85°C |
| Operate Time | 4ms | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 2A (4 Weeks) | Manufacturer Standard Lead Time | 30 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | - |
| Detailed Description | General Purpose Relay DPDT (2 Form C) Surface Mount | Contact Rating (Current) | 2A |
| Contact Material | Silver Nickel (AgNi), Gold (Au) | Contact Form | DPDT (2 Form C) |
| Coil Voltage | 9VDC | Coil Type | Non Latching |
| Coil Resistance | 579 Ohms | Coil Power | 140 mW |
| Coil Current | 15.5mA |
