AGN200A1HZ

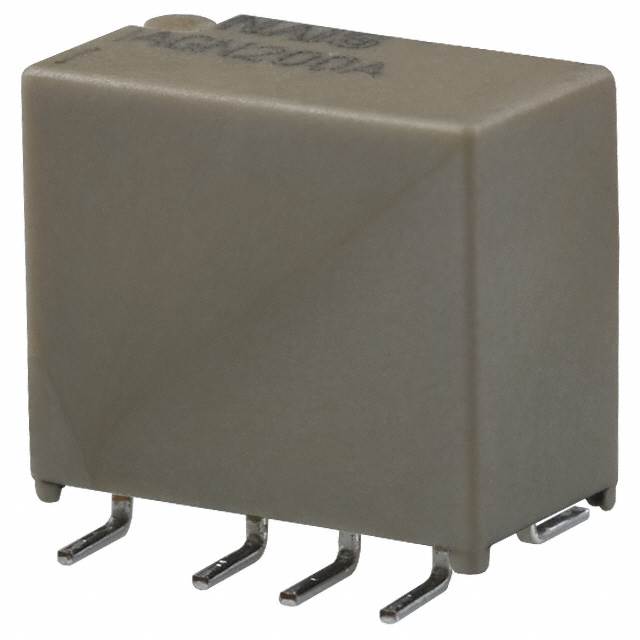

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AGN200A1HZ with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AGN200A1HZ with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AGN200A1HZ |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY TELECOM DPDT 1A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | ||||
|---|---|---|---|---|---|
| $0.938 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | AGN200A1HZ | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RELAY TELECOM DPDT 1A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 37829 pcs | Data sheet | GN Relays (AGN) |
| Category | Relays | Turn On Voltage (Max) | 1.13 VDC |
| Turn Off Voltage (Min) | 0.15 VDC | Termination Style | Gull Wing |
| Switching Voltage | 125VAC, 110VDC - Max | Series | AGN |
| Release Time | 4ms | Relay Type | Telecom |
| Packaging | Tape & Reel (TR) | Operating Temperature | -40°C ~ 85°C |
| Operate Time | 4ms | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 4 (72 Hours) | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | - |
| Detailed Description | Telecom Relay DPDT (2 Form C) Surface Mount | Contact Rating (Current) | 1A |
| Contact Material | Silver Palladium (AgPd), Gold (Au) | Contact Form | DPDT (2 Form C) |
| Coil Voltage | 1.5VDC | Coil Type | Non Latching |
| Coil Resistance | 16 Ohms | Coil Power | 140 mW |
| Coil Current | 93.8mA |
