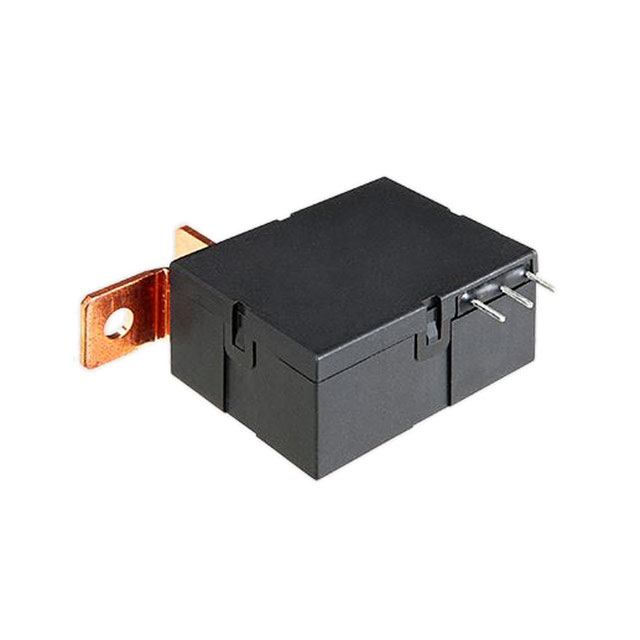

ADZS22105
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ADZS22105 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ADZS22105 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ADZS22105 |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY GEN PURPOSE SPST 90A 5V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 20 pcs | 40 pcs | 60 pcs | |
|---|---|---|---|---|---|
| $8.908 | $8.463 | $8.018 | $7.572 | ||
| 100 pcs | 260 pcs | 500 pcs | |||
| $7.127 | $6.681 | $6.236 | |||
- Product parameter
Product parameter
| Part Number | ADZS22105 | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RELAY GEN PURPOSE SPST 90A 5V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5724 pcs | Data sheet | |
| Category | Relays | Turn On Voltage (Max) | 3.5 VDC |
| Turn Off Voltage (Min) | - | Termination Style | Screw Terminal |
| Switching Voltage | 276VAC - Max | Series | ADZS |
| Release Time | 20ms | Relay Type | General Purpose |
| Packaging | Tray | Other Names | 255-5742 |
| Operating Temperature | -40°C ~ 85°C | Operate Time | 20ms |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | - | Detailed Description | General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Chassis Mount |
| Contact Rating (Current) | 90A | Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Form | SPST-NO (1 Form A) | Coil Voltage | 5VDC |
| Coil Type | Latching, Dual Coil | Coil Resistance | 8.3 Ohms |
| Coil Power | 3 W | Coil Current | 600mA |
