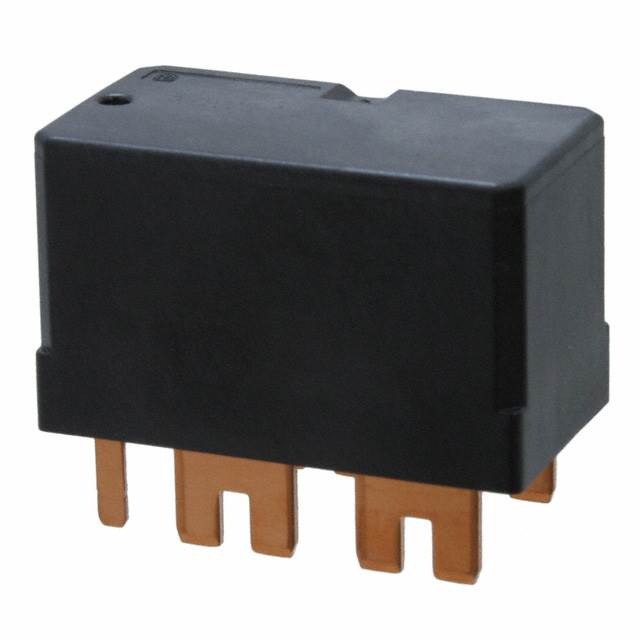

ACW212
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ACW212 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ACW212 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ACW212 |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY AUTOMOTIVE DPST 45A 12V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 40 pcs | 80 pcs | |
|---|---|---|---|---|---|
| $6.867 | $6.103 | $5.798 | $5.493 | ||
| 120 pcs | 280 pcs | 520 pcs | |||
| $5.188 | $4.73 | $4.425 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | ACW212 | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RELAY AUTOMOTIVE DPST 45A 12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7235 pcs | Data sheet | ACW_CW Relays |
| Category | Relays | Turn On Voltage (Max) | 6.2 VDC |
| Turn Off Voltage (Min) | 0.5 VDC | Termination Style | Plug In |
| Switching Voltage | 14VDC - Nom | Series | ACW |
| Release Time | 20ms | Packaging | Tray |
| Other Names | 255-3355 ACW212-ND |
Operating Temperature | -40°C ~ 125°C |
| Operate Time | 20ms | Mounting Type | Socketable |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | - |
| Contact Rating (Current) | 45A | Contact Material | Silver Alloy, Cadmium Free |
| Contact Form | DPST-NO (2 Form A) | Coil Voltage | 12VDC |
| Coil Type | Non Latching | Coil Resistance | 103 Ohms |
| Coil Power | 1.4 W | Coil Current | 117mA |
