2SK3318

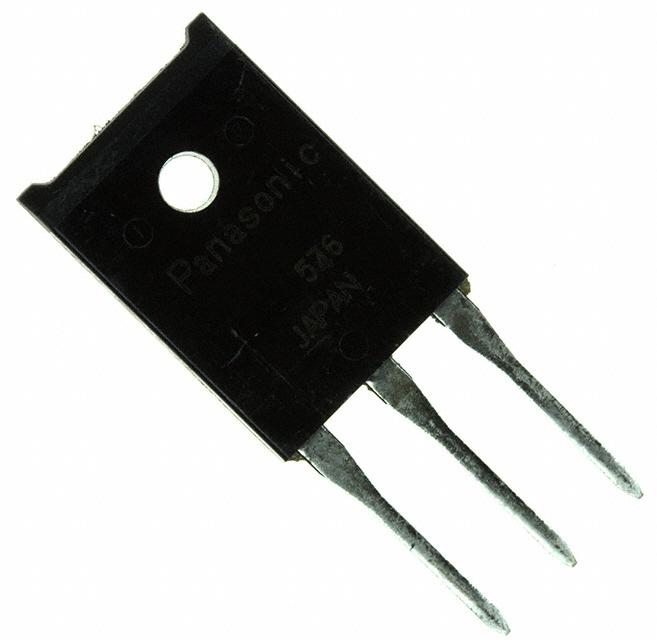

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2SK3318 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2SK3318 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2SK3318 |
|---|---|
| Manufacturer | Panasonic |
| Description | MOSFET N-CH 600V 15A TOP-3F |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2SK3318 | Manufacturer | Panasonic |
|---|---|---|---|
| Description | MOSFET N-CH 600V 15A TOP-3F | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4978 pcs | Data sheet | 2SK3318 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 4V @ 1mA |
| Vgs (Max) | ±30V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | TOP-3F-A1 | Series | - |
| Rds On (Max) @ Id, Vgs | 460 mOhm @ 7.5A, 10V | Power Dissipation (Max) | 3W (Ta), 100W (Tc) |
| Packaging | Bulk | Package / Case | TOP-3F |
| Operating Temperature | 150°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 3500pF @ 20V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 600V | Detailed Description | N-Channel 600V 15A (Tc) 3W (Ta), 100W (Tc) Through Hole TOP-3F-A1 |
| Current - Continuous Drain (Id) @ 25°C | 15A (Tc) |
