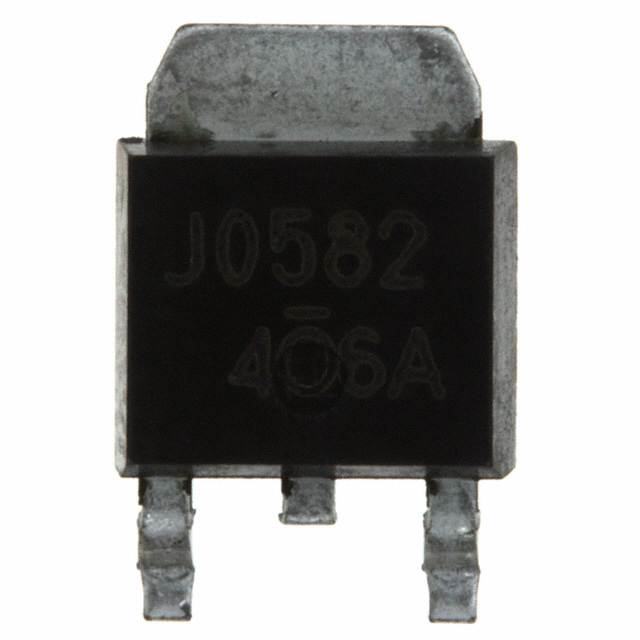

2SJ058200L
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2SJ058200L with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2SJ058200L with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2SJ058200L |
|---|---|
| Manufacturer | Panasonic |
| Description | MOSFET P-CH 200V 2A U-G2 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2SJ058200L | Manufacturer | Panasonic |
|---|---|---|---|
| Description | MOSFET P-CH 200V 2A U-G2 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5894 pcs | Data sheet | 2SJ05820 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 4V @ 1mA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | U-G2 | Series | - |
| Rds On (Max) @ Id, Vgs | 2 Ohm @ 1A, 10V | Power Dissipation (Max) | 1W (Ta), 10W (Tc) |
| Packaging | Original-Reel® | Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Other Names | 2SJ058200LDKR | Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 400pF @ 20V |
| FET Type | P-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | Drain to Source Voltage (Vdss) | 200V |
| Detailed Description | P-Channel 200V 2A (Tc) 1W (Ta), 10W (Tc) Surface Mount U-G2 | Current - Continuous Drain (Id) @ 25°C | 2A (Tc) |
