2SD19960TA

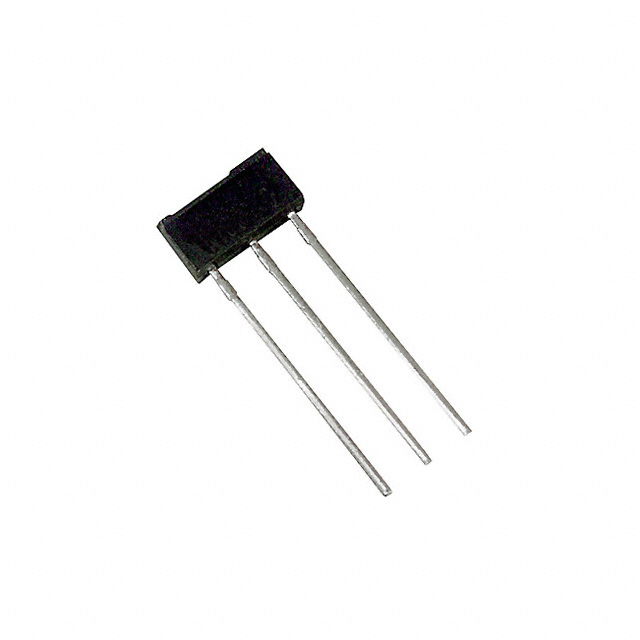

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2SD19960TA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2SD19960TA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2SD19960TA |
|---|---|
| Manufacturer | Panasonic |
| Description | TRANS NPN 20V 0.5A MT-1 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 2000 pcs | ||||
|---|---|---|---|---|---|
| $0.059 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2SD19960TA | Manufacturer | Panasonic |
|---|---|---|---|
| Description | TRANS NPN 20V 0.5A MT-1 | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 400957 pcs | Data sheet | 2SD1996 Datasheet |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 20V |
| Vce Saturation (Max) @ Ib, Ic | 400mV @ 20mA, 500mA | Transistor Type | NPN |
| Supplier Device Package | MT-1-A1 | Series | - |
| Power - Max | 600mW | Packaging | Tape & Box (TB) |
| Package / Case | 3-SIP | Other Names | 2SD1996-T(TA) 2SD19960TATB 2SD1996TTA 2SD1996TTB 2SD1996TTB-ND |
| Operating Temperature | 150°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Frequency - Transition | 200MHz | Detailed Description | Bipolar (BJT) Transistor NPN 20V 500mA 200MHz 600mW Through Hole MT-1-A1 |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 400 @ 500mA, 2V | Current - Collector Cutoff (Max) | 100nA (ICBO) |
| Current - Collector (Ic) (Max) | 500mA | Base Part Number | 2SD1996 |
