2SD14850P

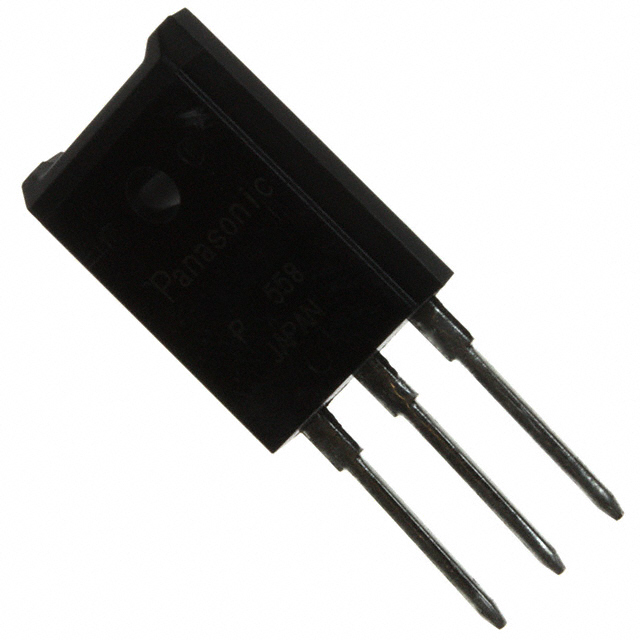

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2SD14850P with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2SD14850P with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2SD14850P |
|---|---|
| Manufacturer | Panasonic |
| Description | TRANS NPN 100V 5A TOP-3F |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2SD14850P | Manufacturer | Panasonic |
|---|---|---|---|
| Description | TRANS NPN 100V 5A TOP-3F | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5908 pcs | Data sheet | 2SD1485 Datasheet |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 100V |
| Vce Saturation (Max) @ Ib, Ic | 2V @ 300mA, 3A | Transistor Type | NPN |
| Supplier Device Package | TOP-3F-A1 | Series | - |
| Power - Max | 3W | Packaging | Bulk |
| Package / Case | TOP-3F | Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Frequency - Transition | 20MHz |
| Detailed Description | Bipolar (BJT) Transistor NPN 100V 5A 20MHz 3W Through Hole TOP-3F-A1 | DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 1A, 5V |
| Current - Collector Cutoff (Max) | 50µA (ICBO) | Current - Collector (Ic) (Max) | 5A |
