2SC4960

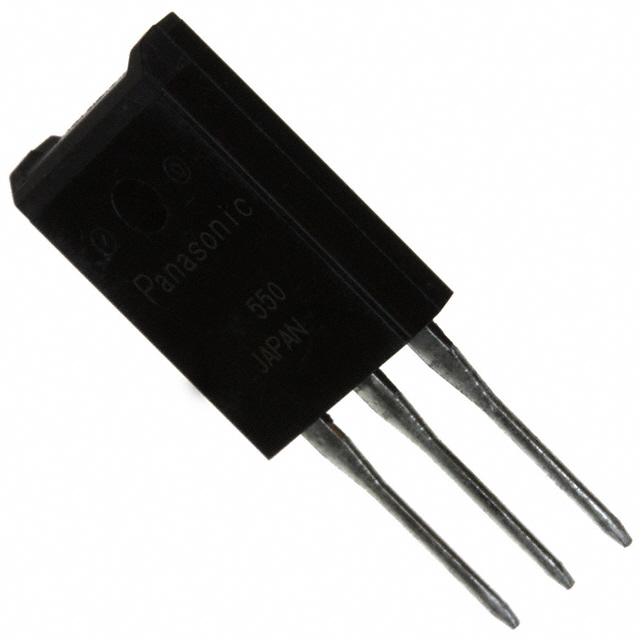

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2SC4960 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2SC4960 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2SC4960 |
|---|---|
| Manufacturer | Panasonic |
| Description | TRANS NPN 800V 1A TOP-3F |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2SC4960 | Manufacturer | Panasonic |
|---|---|---|---|
| Description | TRANS NPN 800V 1A TOP-3F | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5720 pcs | Data sheet | 2SC4960 Datasheet |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 800V |
| Vce Saturation (Max) @ Ib, Ic | 1.5V @ 40mA, 200mA | Transistor Type | NPN |
| Supplier Device Package | TOP-3F-A1 | Series | - |
| Power - Max | 3W | Packaging | Bulk |
| Package / Case | TOP-3F | Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Frequency - Transition | 4MHz |
| Detailed Description | Bipolar (BJT) Transistor NPN 800V 1A 4MHz 3W Through Hole TOP-3F-A1 | DC Current Gain (hFE) (Min) @ Ic, Vce | 3 @ 500mA, 5V |
| Current - Collector Cutoff (Max) | 50µA (ICBO) | Current - Collector (Ic) (Max) | 1A |
