2SC3974

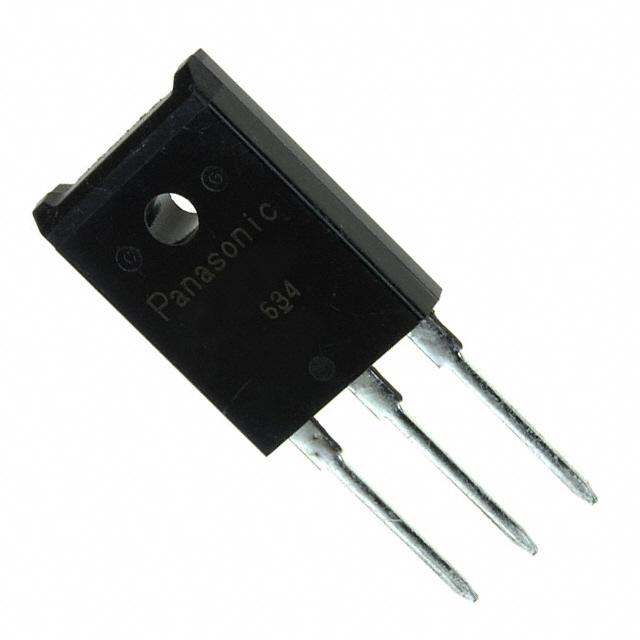

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2SC3974 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2SC3974 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2SC3974 |
|---|---|
| Manufacturer | Panasonic |
| Description | TRANS NPN 500V 7A TOP-3F |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2SC3974 | Manufacturer | Panasonic |
|---|---|---|---|
| Description | TRANS NPN 500V 7A TOP-3F | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4956 pcs | Data sheet | 2SC3974 Datasheet |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 500V |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 800mA, 4A | Transistor Type | NPN |
| Supplier Device Package | TOP-3F-A1 | Series | - |
| Power - Max | 3W | Packaging | Bulk |
| Package / Case | TOP-3F | Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Frequency - Transition | 20MHz |
| Detailed Description | Bipolar (BJT) Transistor NPN 500V 7A 20MHz 3W Through Hole TOP-3F-A1 | DC Current Gain (hFE) (Min) @ Ic, Vce | 8 @ 4A, 5V |
| Current - Collector Cutoff (Max) | 100µA (ICBO) | Current - Collector (Ic) (Max) | 7A |
