2SC2258

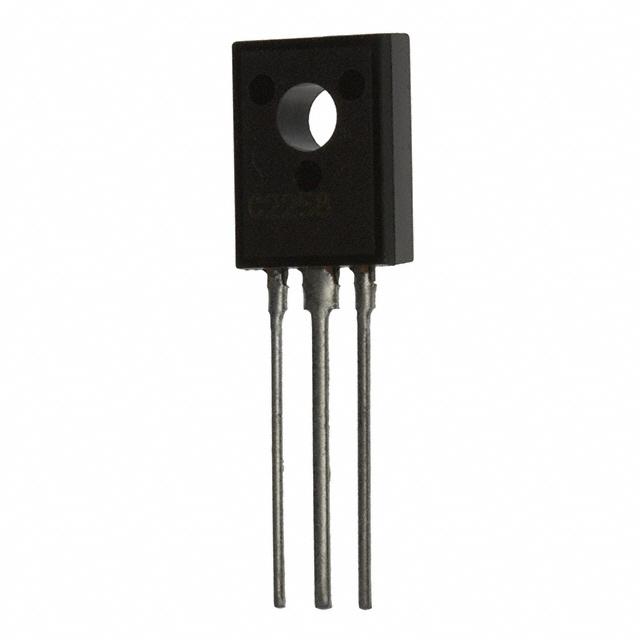

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2SC2258 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2SC2258 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2SC2258 |
|---|---|
| Manufacturer | Panasonic |
| Description | TRANS NPN 250V 0.1A TO-126 |
| Lead Free Status / RoHS Status | Request inventory verification / Request inventory verification |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.273 | $0.239 | $0.211 | $0.184 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $0.16 | $0.136 | $0.109 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2SC2258 | Manufacturer | Panasonic |
|---|---|---|---|
| Description | TRANS NPN 250V 0.1A TO-126 | Lead Free Status / RoHS Status | Request inventory verification / Request inventory verification |
| Quantity Available | 211949 pcs | Data sheet | 2SC2258 Datasheet |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 250V |
| Vce Saturation (Max) @ Ib, Ic | 1.2V @ 5mA, 50mA | Transistor Type | NPN |
| Supplier Device Package | TO-126B-A1 | Series | - |
| Power - Max | 4W | Packaging | Bulk |
| Package / Case | TO-225AA, TO-126-3 | Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Request inventory verification / Request inventory verification | Frequency - Transition | 100MHz |
| Detailed Description | Bipolar (BJT) Transistor NPN 250V 100mA 100MHz 4W Through Hole TO-126B-A1 | DC Current Gain (hFE) (Min) @ Ic, Vce | 40 @ 40mA, 20V |
| Current - Collector Cutoff (Max) | - | Current - Collector (Ic) (Max) | 100mA |
