Home > Products > Discrete Semiconductor Products > Transistors - Bipolar (BJT) - Single > 2SB11540Q

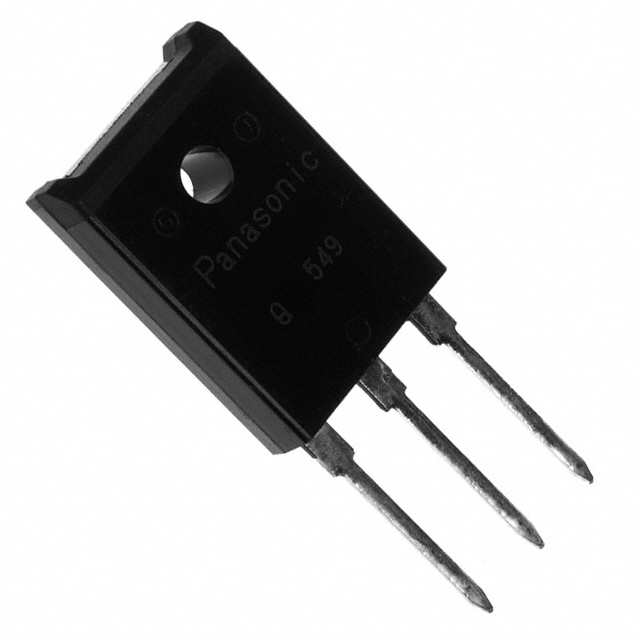

2SB11540Q

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2SB11540Q with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	2SB11540Q
Manufacturer	Panasonic
Description	TRANS PNP 80V 10A TOP-3F
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5683 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	2SB11540Q	Manufacturer	Panasonic
Description	TRANS PNP 80V 10A TOP-3F	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5683 pcs	Data sheet	2SB1154 Datasheet
Category	Discrete Semiconductor Products	Voltage - Collector Emitter Breakdown (Max)	80V
Vce Saturation (Max) @ Ib, Ic	1.5V @ 1A, 10A	Transistor Type	PNP
Supplier Device Package	TOP-3F-A1	Series	-
Power - Max	3W	Packaging	Bulk
Package / Case	TOP-3F	Operating Temperature	150°C (TJ)
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Frequency - Transition	30MHz
Detailed Description	Bipolar (BJT) Transistor PNP 80V 10A 30MHz 3W Through Hole TOP-3F-A1	DC Current Gain (hFE) (Min) @ Ic, Vce	90 @ 3A, 2V
Current - Collector Cutoff (Max)	10µA (ICBO)	Current - Collector (Ic) (Max)	10A
