AT-2336-TWT-R

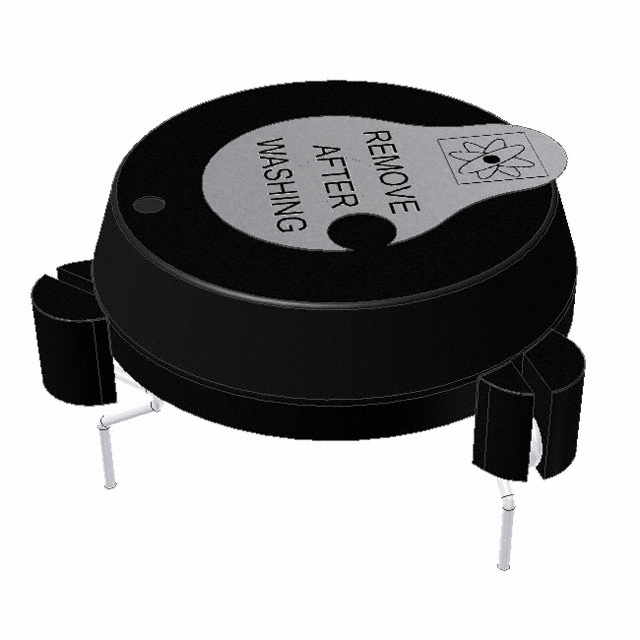

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AT-2336-TWT-R with confidence from Components-World.HK, 1 Year Warranty
Dowload AT-2336-TWT-R Details in PDFSee Product Specifications for product details.
Buy AT-2336-TWT-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AT-2336-TWT-R |
|---|---|
| Manufacturer | PUI Audio, Inc. |
| Description | AUDIO PIEZO TRANSDUCER 3-18V TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.824 | $0.655 | $0.596 | $0.558 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.52 | $0.475 | $0.44 | $0.433 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | AT-2336-TWT-R | Manufacturer | PUI Audio, Inc. |
|---|---|---|---|
| Description | AUDIO PIEZO TRANSDUCER 3-18V TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 77971 pcs | Data sheet | AT-2336-TWT-R |
| Category | Audio Products | Voltage Range | 3 ~ 18V |
| Voltage - Rated | 12V | Termination | PC Pins |
| Technology | Piezo (with Feedback) | Sound Pressure Level (SPL) | 90dB @ 12V, 10cm |
| Size / Dimension | 0.906" Dia (23.00mm) | Series | AT |
| Ratings | Washable | Port Location | Top |
| Packaging | Bulk | Other Names | 668-1316 AT-2336-TWT-R-ND AT2336TWTR |
| Operating Temperature | -20°C ~ 60°C | Operating Mode | Single Tone |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | Peak-Peak Signal | Height - Seated (Max) | 0.492" (12.50mm) |
| Frequency | 3.6kHz | Duration | - |
| Driver Circuitry | Transducer, Externally Driven | Detailed Description | Buzzers Transducer, Externally Driven Piezo (with Feedback) 12V 8mA 3.6kHz 90dB @ 12V, 10cm Through Hole PC Pins |
| Current - Supply | 8mA | Approvals | - |
