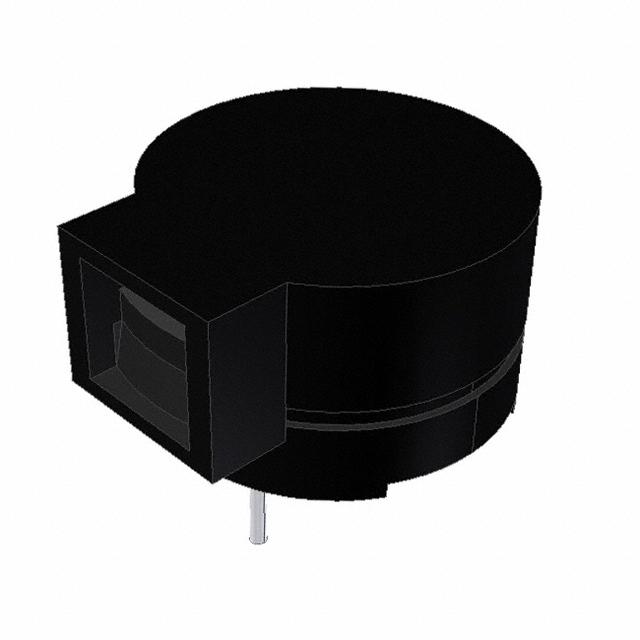

AT-1420-ST-R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AT-1420-ST-R with confidence from Components-World.HK, 1 Year Warranty
Dowload AT-1420-ST-R Details in PDFSee Product Specifications for product details.
Buy AT-1420-ST-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AT-1420-ST-R |
|---|---|
| Manufacturer | PUI Audio, Inc. |
| Description | AUDIO MAGNETIC XDCR 1-3V TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.497 | $0.394 | $0.359 | $0.335 | $0.312 | |
| 300 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.285 | $0.265 | $0.248 | $0.242 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | AT-1420-ST-R | Manufacturer | PUI Audio, Inc. |
|---|---|---|---|
| Description | AUDIO MAGNETIC XDCR 1-3V TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 87906 pcs | Data sheet | AT-1420-ST-R |
| Category | Audio Products | Voltage Range | 1 ~ 3V |
| Voltage - Rated | 1.5V | Termination | PC Pins |
| Technology | Magnetic | Sound Pressure Level (SPL) | 80dB @ 1.5V, 10cm |
| Size / Dimension | 0.543" L x 0.472" W (13.80mm x 12.00mm) | Series | AT |
| Ratings | - | Port Location | Side |
| Packaging | Tray | Other Names | 668-1376 688-1376 688-1376-ND AT-1420-ST-R-ND AT1420STR |
| Operating Temperature | -20°C ~ 70°C | Operating Mode | Single Tone |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | Peak-Peak Signal | Height - Seated (Max) | 0.315" (8.00mm) |
| Frequency | 2.048kHz | Duration | - |
| Driver Circuitry | Transducer, Externally Driven | Detailed Description | Buzzers Transducer, Externally Driven Magnetic 1.5V 70mA 2.048kHz 80dB @ 1.5V, 10cm Through Hole PC Pins |
| Current - Supply | 70mA | Approvals | - |
