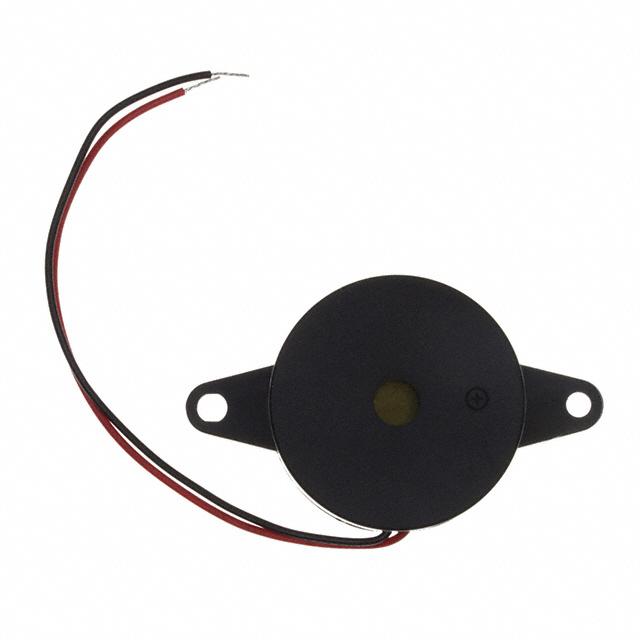

AI-3135-TF-LW100-R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AI-3135-TF-LW100-R with confidence from Components-World.HK, 1 Year Warranty
Dowload AI-3135-TF-LW100-R Details in PDFSee Product Specifications for product details.
Buy AI-3135-TF-LW100-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AI-3135-TF-LW100-R |
|---|---|
| Manufacturer | PUI Audio, Inc. |
| Description | AUDIO PIEZO INDICATOR 3-20V CHAS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.054 | $0.835 | $0.762 | $0.712 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.662 | $0.607 | $0.57 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | AI-3135-TF-LW100-R | Manufacturer | PUI Audio, Inc. |
|---|---|---|---|
| Description | AUDIO PIEZO INDICATOR 3-20V CHAS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 63038 pcs | Data sheet | AI-3135-TF-LW100-R |
| Category | Audio Products | Voltage Range | 3 ~ 20V |
| Voltage - Rated | 9V | Termination | Wire Leads |
| Technology | Piezo | Sound Pressure Level (SPL) | 105dB @ 9V, 10cm |
| Size / Dimension | 1.220" Dia (31.00mm) | Series | AI |
| Ratings | - | Port Location | Top |
| Packaging | Tray | Other Names | 668-1350 688-1350 688-1350-ND AI-3135-TF-LW100-R-ND AI3135TFLW100R |
| Operating Temperature | -20°C ~ 60°C | Operating Mode | Single Tone |
| Mounting Type | Panel Mount, Flange | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | DC | Height - Seated (Max) | 0.571" (14.50mm) |
| Frequency | 3.5kHz | Duration | - |
| Driver Circuitry | Indicator, Internally Driven | Detailed Description | Buzzers Indicator, Internally Driven Piezo 9V 8mA 3.5kHz 105dB @ 9V, 10cm Panel Mount, Flange Wire Leads |
| Current - Supply | 8mA | Approvals | - |
