Home > Products > Fans, Thermal Management > DC Fans > OD1238-24HTB

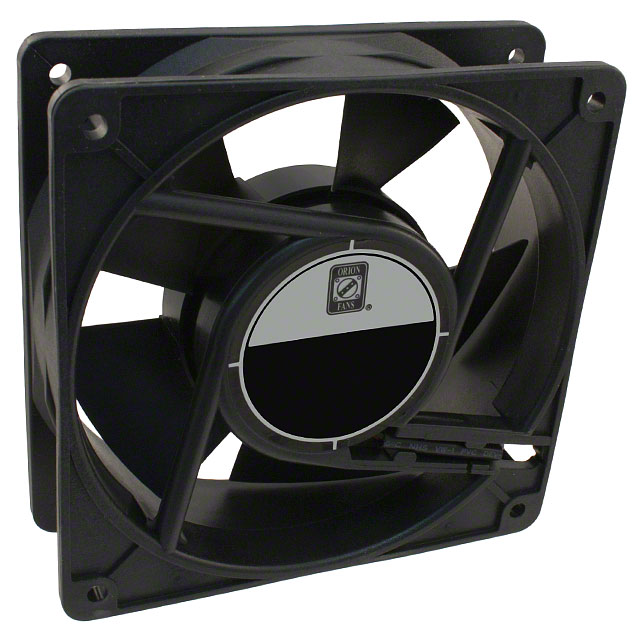

OD1238-24HTB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy OD1238-24HTB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	OD1238-24HTB
Manufacturer	Orion Fans
Description	FAN AXIAL 120X38.5MM 24VDC TERM
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs
~~In Stock~~ 7553 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs
	$7.005	$6.367	$6.155
	$5.306	$5.20	$5.179

Product parameter
Data sheet

Product parameter

Part Number	OD1238-24HTB	Manufacturer	Orion Fans
Description	FAN AXIAL 120X38.5MM 24VDC TERM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	7553 pcs	Data sheet	AC,DC Part Number Guide OD1238 HTB Series Datasheet Orion Fan Catalog
Category	Fans, Thermal Management	Width	38.50mm
Weight	-	Voltage Range	-
Voltage - Rated	24VDC	Termination	2 Terminals
Static Pressure	0.240 in H2O (59.8 Pa)	Size / Dimension	Square - 120mm L x 120mm H
Series	OD1238	RPM	2800 RPM
Power (Watts)	7.00W	Other Names	1053-1159 OD1238-24HTBX OD123824HTB OD1238PT-24HTB
Operating Temperature	14 ~ 158°F (-10 ~ 70°C)	Noise	43.0 dB
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Material - Blade	Polybutylene Terephthalate (PBT), Fiberglass Reinforced	Manufacturer Standard Lead Time	19 Weeks
Lifetime @ Temp.	65000 Hrs @ 45°C	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Features	-
Fan Type	Tubeaxial	Current Rating	0.320A
Bearing Type	Ball	Approvals	cURus, TUV
Air Flow	105.0 CFM (2.94m³/min)
