Home > Products > Fans, Thermal Management > DC Fans > OD1238-24HB02A

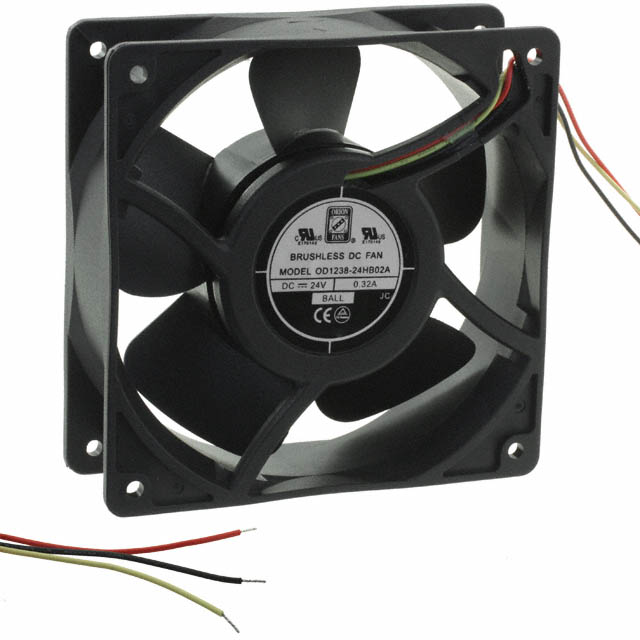

OD1238-24HB02A

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy OD1238-24HB02A with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	OD1238-24HB02A
Manufacturer	Orion Fans
Description	FAN AXIAL 120X38.5MM 24VDC WIRE
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs
~~In Stock~~ 6405 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs
	$8.163	$7.422	$7.175
	$6.185	$6.061	$6.037

Product parameter
Data sheet

Product parameter

Part Number	OD1238-24HB02A	Manufacturer	Orion Fans
Description	FAN AXIAL 120X38.5MM 24VDC WIRE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6405 pcs	Data sheet	AC,DC Part Number Guide Orion Fan Catalog Circuit Diagrams OD1238 Series Datasheet
Category	Fans, Thermal Management	Width	38.50mm
Weight	-	Voltage Range	-
Voltage - Rated	24VDC	Termination	3 Wire Leads
Static Pressure	0.240 in H2O (59.8 Pa)	Size / Dimension	Square - 120mm L x 120mm H
Series	OD1238	RPM	2800 RPM
Power (Watts)	7.00W	Other Names	1053-1424 OD1238-24HB02AX OD123824HB02A OD1238PT-24HB02A
Operating Temperature	14 ~ 158°F (-10 ~ 70°C)	Noise	43.0 dB
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Material - Blade	Polybutylene Terephthalate (PBT), Fiberglass Reinforced	Manufacturer Standard Lead Time	19 Weeks
Lifetime @ Temp.	65000 Hrs @ 45°C	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Features	Locked Rotor Sensor
Fan Type	Tubeaxial	Current Rating	0.320A
Bearing Type	Ball	Approvals	cURus, TUV
Air Flow	105.0 CFM (2.94m³/min)
