Home > Products > Fans, Thermal Management > DC Fans > OD1225-24HB01A

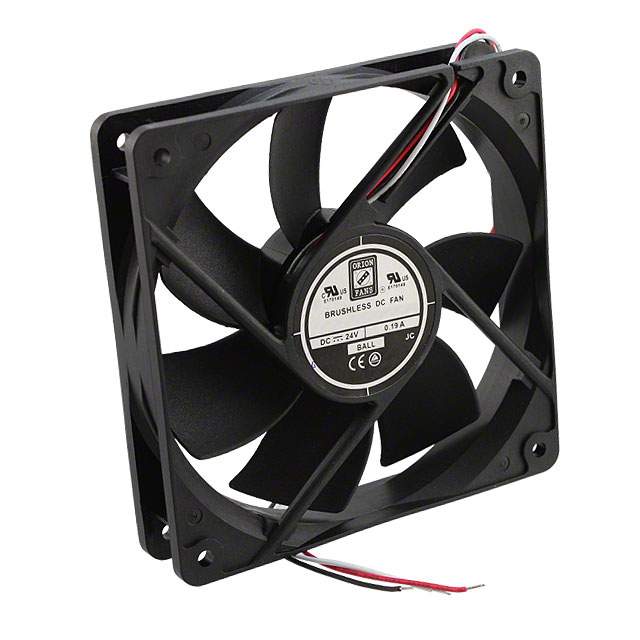

OD1225-24HB01A

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy OD1225-24HB01A with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	OD1225-24HB01A
Manufacturer	Orion Fans
Description	FAN AXIAL 120X25MM 24VDC WIRE
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs
~~In Stock~~ 5719 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs
	$7.409	$6.735	$6.51
	$5.612	$5.50	$5.477

Product parameter
Data sheet

Product parameter

Part Number	OD1225-24HB01A	Manufacturer	Orion Fans
Description	FAN AXIAL 120X25MM 24VDC WIRE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5719 pcs	Data sheet	AC,DC Part Number Guide Orion Fan Catalog OD1225 Series Datasheet Circuit Diagrams
Category	Fans, Thermal Management	Width	25.00mm
Weight	-	Voltage Range	-
Voltage - Rated	24VDC	Termination	3 Wire Leads
Static Pressure	0.140 in H2O (34.9 Pa)	Size / Dimension	Square - 120mm L x 120mm H
Series	OD1225	RPM	2200 RPM
Power (Watts)	5.00W	Other Names	1053-1130 OD1225-24HB01AX OD122524HB01A OD1225PT-24HB01A
Operating Temperature	14 ~ 158°F (-10 ~ 70°C)	Noise	39.0 dB
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Material - Blade	Polybutylene Terephthalate (PBT), Fiberglass Reinforced	Manufacturer Standard Lead Time	19 Weeks
Lifetime @ Temp.	65000 Hrs @ 45°C	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Features	Speed Sensor (Tach)
Fan Type	Tubeaxial	Current Rating	0.190A
Bearing Type	Ball	Approvals	cURus, TUV
Air Flow	89.0 CFM (2.49m³/min)
