Home > Products > Optoelectronics > LED Lighting - Color > OVTL09LGAR

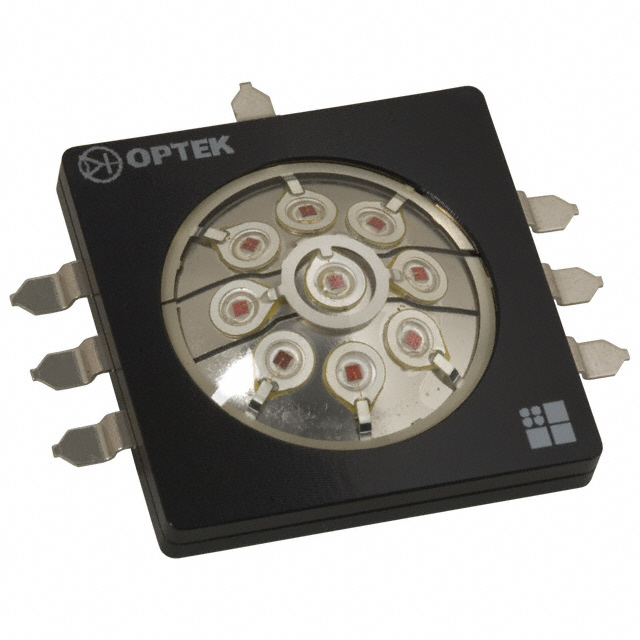

OVTL09LGAR

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy OVTL09LGAR with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	OVTL09LGAR
Manufacturer	Optek Technology / TT Electronics
Description	LED 624NM RED 10W 33MM ARRAY
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 2389 pcs
Reference Price (In US Dollars)	25 pcs
Reference Price (In US Dollars)	$14.33

Product parameter
Data sheet

Product parameter

Part Number	OVTL09LGAR	Manufacturer	Optek Technology / TT Electronics
Description	LED 624NM RED 10W 33MM ARRAY	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2389 pcs	Data sheet	OVTL09LGAx Series
Category	Optoelectronics	Wavelength	625nm (620nm ~ 630nm)
Voltage - Forward (Vf) (Typ)	7V	Viewing Angle	120°
Thermal Resistance of Package	5°C/W	Temperature - Test	25°C
Supplier Device Package	SMD	Size / Dimension	1.299" L x 1.299" W (33.00mm x 33.00mm)
Series	-	Packaging	Tray
Package / Case	8-SMD (7 Leads), Gull Wing	Other Names	365-1243
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lumens/Watt @ Current - Test	34 lm/W	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	0.315" (8.00mm)	Flux @ Current/Temperature - Test	247 lm (Typ)
Detailed Description	LED Lighting Color - Red 625nm (620nm ~ 630nm) 8-SMD (7 Leads), Gull Wing	Current - Test	1.05A
Current - Max	1.05A	Color	Red
