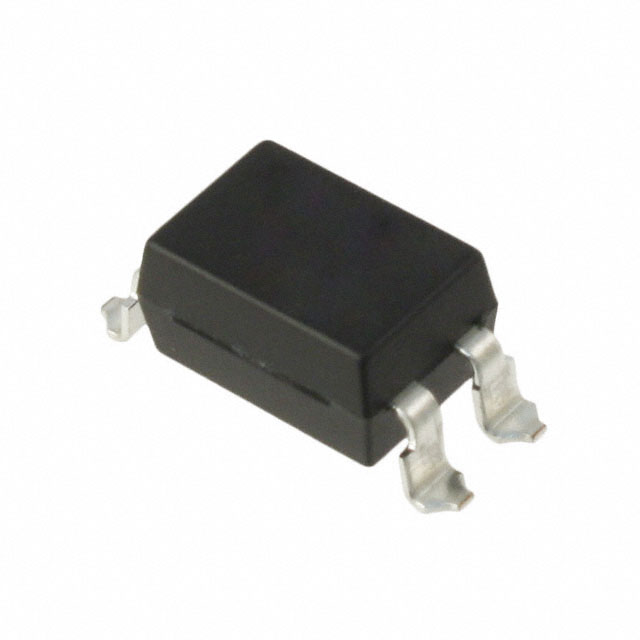

OPIA815ATRE
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy OPIA815ATRE with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy OPIA815ATRE with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | OPIA815ATRE |
|---|---|
| Manufacturer | Optek Technology / TT Electronics |
| Description | OPTOISOLTR 5KV DARLINGTON 4-SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | OPIA815ATRE | Manufacturer | Optek Technology / TT Electronics |
|---|---|---|---|
| Description | OPTOISOLTR 5KV DARLINGTON 4-SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5899 pcs | Data sheet | OPIA814/15/17, OPIA1210/4010 |
| Category | Isolators | Voltage - Output (Max) | 35V |
| Voltage - Isolation | 5000Vrms | Voltage - Forward (Vf) (Typ) | 1.2V |
| Vce Saturation (Max) | 1V | Turn On / Turn Off Time (Typ) | - |
| Supplier Device Package | 4-SMD | Series | - |
| Rise / Fall Time (Typ) | 80µs, 72µs | Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Gull Wing | Output Type | Darlington |
| Other Names | 365-1428-2 OPIA411ATR |
Operating Temperature | -30°C ~ 100°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | DC | Detailed Description | Optoisolator Darlington Output 5000Vrms 1 Channel 4-SMD |
| Current Transfer Ratio (Min) | 70% @ 50µA | Current Transfer Ratio (Max) | - |
| Current - Output / Channel | 80mA | Current - DC Forward (If) (Max) | 50mA |
