Home > Products > Isolators > Optoisolators - Transistor, Photovoltaic Output > OPIA402BTU

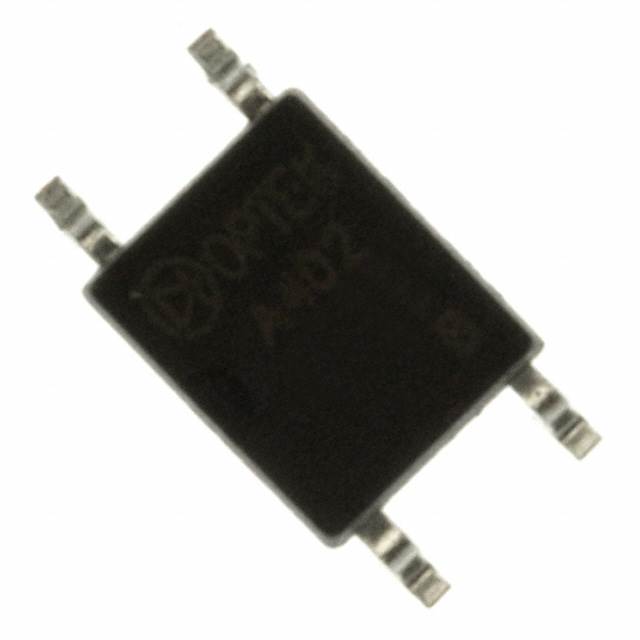

OPIA402BTU

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy OPIA402BTU with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	OPIA402BTU
Manufacturer	Optek Technology / TT Electronics
Description	OPTOISOLATOR 3.75KV TRANS 4-SOP
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5622 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	OPIA402BTU	Manufacturer	Optek Technology / TT Electronics
Description	OPTOISOLATOR 3.75KV TRANS 4-SOP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5622 pcs	Data sheet	OPIA400-409,414
Category	Isolators	Voltage - Output (Max)	60V
Voltage - Isolation	3750Vrms	Voltage - Forward (Vf) (Typ)	1.2V
Vce Saturation (Max)	300mV	Turn On / Turn Off Time (Typ)	-
Supplier Device Package	4-SOP (2.54mm)	Series	-
Rise / Fall Time (Typ)	4µs, 3µs	Packaging	Tube
Package / Case	4-SMD, Gull Wing	Output Type	Transistor
Other Names	365-1416	Operating Temperature	-30°C ~ 100°C
Number of Channels	1	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	AC, DC	Detailed Description	Optoisolator Transistor Output 3750Vrms 1 Channel 4-SOP (2.54mm)
Current Transfer Ratio (Min)	20% @ 1mA	Current Transfer Ratio (Max)	400% @ 1mA
Current - Output / Channel	50mA	Current - DC Forward (If) (Max)	50mA
