Home > Products > Sensors, Transducers > Optical Sensors - Phototransistors > OP804TX

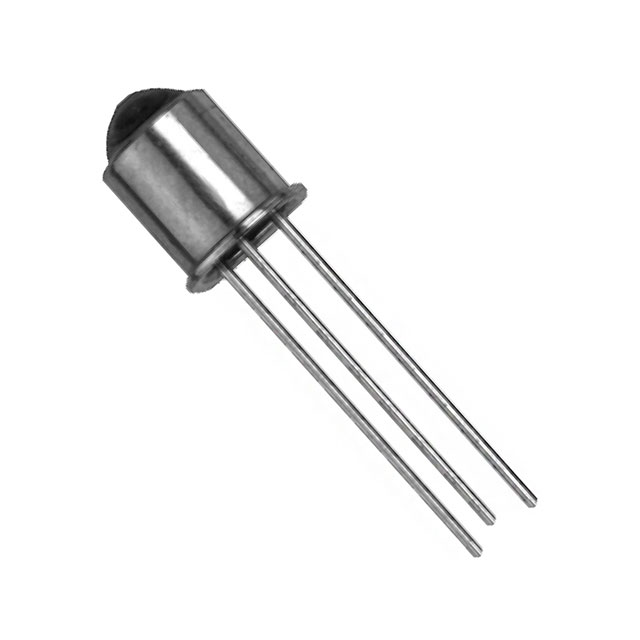

OP804TX

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy OP804TX with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	OP804TX
Manufacturer	Optek Technology / TT Electronics
Description	PHOTOTRANS SILICON NPN TO-18
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant

~~In Stock~~ 4350 pcs
Reference Price (In US Dollars)	100 pcs
Reference Price (In US Dollars)	$9.065

Product parameter
Data sheet

Product parameter

Part Number	OP804TX	Manufacturer	Optek Technology / TT Electronics
Description	PHOTOTRANS SILICON NPN TO-18	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	4350 pcs	Data sheet	OP804-805(TX,TXV)
Category	Sensors, Transducers	Wavelength	890nm
Voltage - Collector Emitter Breakdown (Max)	30V	Viewing Angle	24°
Series	*	Power - Max	250mW
Packaging	Bulk	Package / Case	TO-206AA, TO-18-3 Metal Can
Orientation	Top View	Operating Temperature	-65°C ~ 125°C (TA)
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Detailed Description	Phototransistor 890nm Top View TO-206AA, TO-18-3 Metal Can	Current - Dark (Id) (Max)	100nA
Current - Collector (Ic) (Max)	50mA
