Home > Products > Sensors, Transducers > Optical Sensors - Phototransistors > OP570

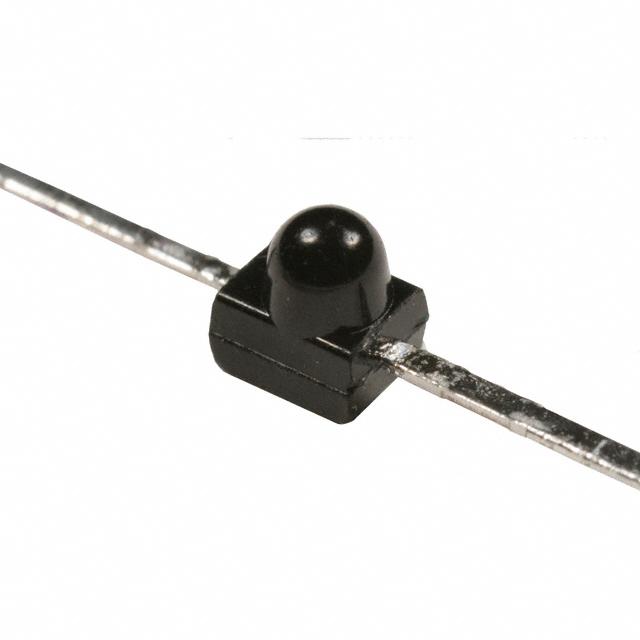

OP570

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy OP570 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	OP570
Manufacturer	Optek Technology / TT Electronics
Description	PHOTOTRANSISTOR NPN AXIAL LD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5554 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	OP570	Manufacturer	Optek Technology / TT Electronics
Description	PHOTOTRANSISTOR NPN AXIAL LD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5554 pcs	Data sheet	OP570-73
Category	Sensors, Transducers	Wavelength	935nm
Voltage - Collector Emitter Breakdown (Max)	30V	Viewing Angle	25°
Series	*	Power - Max	130mW
Packaging	Bulk	Package / Case	Axial, Flat Leads
Other Names	365-1158	Orientation	Top View
Operating Temperature	-25°C ~ 85°C (TA)	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Detailed Description	Phototransistor 935nm Top View Axial, Flat Leads	Current - Dark (Id) (Max)	100nA
Current - Collector (Ic) (Max)	20mA
