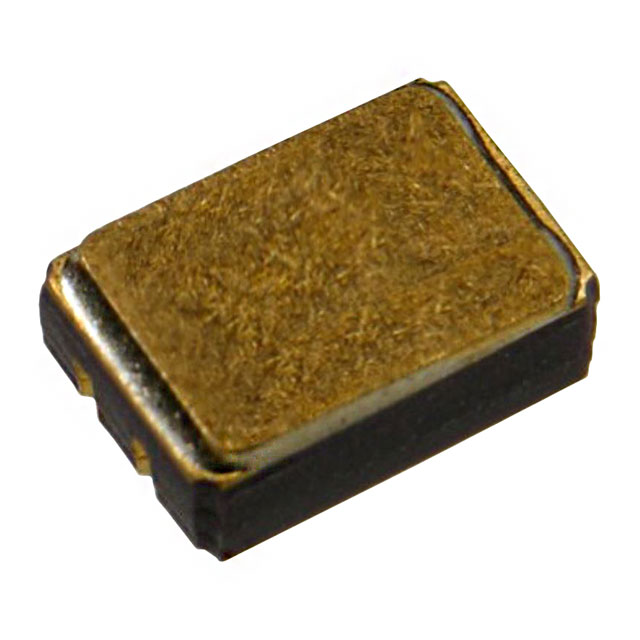

HCC242TX
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HCC242TX with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HCC242TX with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HCC242TX |
|---|---|
| Manufacturer | Optek Technology / TT Electronics |
| Description | OPTOISOLATOR 1KV TRANS 4-CLCC |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $9.311 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | HCC242TX | Manufacturer | Optek Technology / TT Electronics |
|---|---|---|---|
| Description | OPTOISOLATOR 1KV TRANS 4-CLCC | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 3619 pcs | Data sheet | HCC240,242(TX,TXV,ESA-XN) |
| Category | Isolators | Voltage - Output (Max) | 30V |
| Voltage - Isolation | 1000VDC | Voltage - Forward (Vf) (Typ) | 1.5V (Max) |
| Vce Saturation (Max) | 300mV | Turn On / Turn Off Time (Typ) | - |
| Supplier Device Package | 4-CLCC (5.59x3.81) | Series | - |
| Rise / Fall Time (Typ) | 20µs, 20µs | Packaging | Bulk |
| Package / Case | 4-SMD, No Lead | Output Type | Transistor |
| Operating Temperature | -55°C ~ 125°C | Number of Channels | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Input Type | DC | Detailed Description | Optoisolator Transistor Output 1000VDC 1 Channel 4-CLCC (5.59x3.81) |
| Current Transfer Ratio (Min) | 100% @ 10mA | Current Transfer Ratio (Max) | - |
| Current - Output / Channel | 50mA | Current - DC Forward (If) (Max) | 40mA |
